Original Factory Furring Channel Forming Machine - 950mm Arc Glazed tile roofing making machine pillar frame – Zhongtuo Detail:

950mm Arc Glazed tile roofing making machine pillar frame

950mm Arc Glazed tile roofing making machine pillar frame means for this profile, the valid width is 950mm, and we use the pillar as the frame.

This kind of pillar frame is easy for fixing roller and beautiful in appearance. The following is the drawing profile of 950mm Arc Glazed tile for your reference:

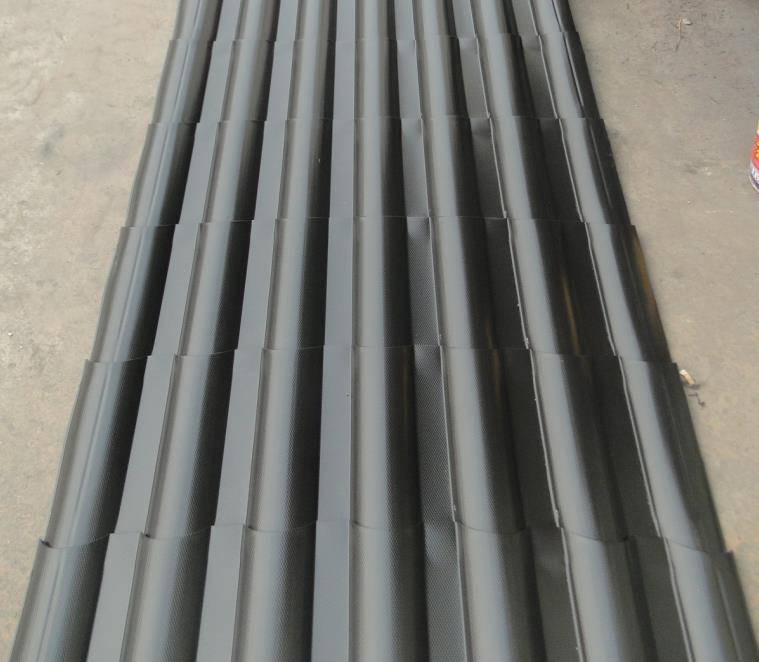

step tile making machine

950mm Arc Glazed tile roofing making machine pillar frame machine parameters for your reference:

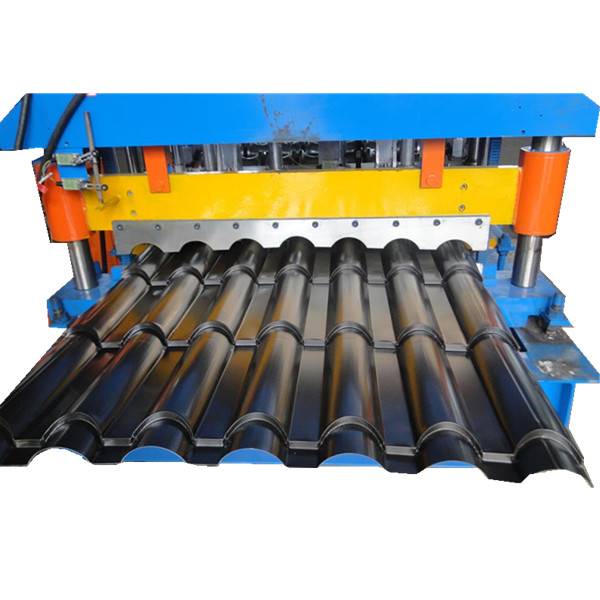

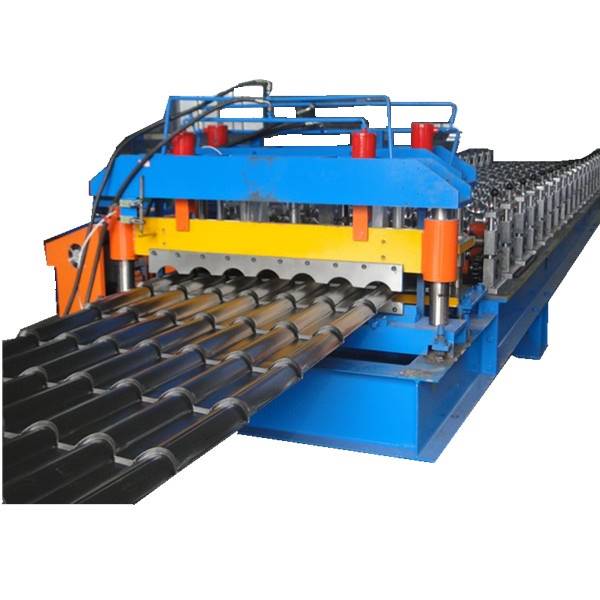

bamboo type glazed tile making machine

Processing material: colored steel plate, galvanized plate, or aluminum plate
Material thickness: 0.3—0.8mm
Material hardness: 195 mpa—350 mpa
Material width: 1200mm
Formed width: 950mm
Wavelength: 158.3mm
Step height: 33mm
Step length:150mm—380mm(adjustable)
Forming speed: 8-12m/min
Working speed :3-5.5m/min
Uncoiler System
Usage:It is used to support the steel coil and uncoil it in a turnable way.
Passive uncoil pulled by roll forming system
Loading capacity:5T
Uncoiling width:1200mm
Inner diameter: 450-550mm

bamboo type shearing system
Entry Beach of 950mm Arc Glazed tile roofing making machine pillar frame
Usage:Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.
Main Roll Forming System
Feature : Ensure stability , precision and lifetime.
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Length of the main part: about
Weight of main part: 8.5 tons
Roller fixer : Guide post
Frame : 400 H steel
Drive mode: chain
Material of rollers:45# steel, surface hard chromium plating.
Material of shafts: 45# steel
Diameter of shafts: φ80mm
Number of rollers : 18 rollers
Main power: 5.5kw
Step-formed mechanism
Feature : it is used to make the step , the glazed tile’s final formed
Material of mold : Cr12 quenched

Shearing Mechanism of 950mm Arc Glazed tile roofing making machine pillar frame
Feature : Ensure stability, precision and cutting speed
Function : Automatic cutting controlled by PLC
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12 quenched
Power supply : hydraulic power
Components:It contains one set of blade, one hydraulic tank and one cutter machine.
Hydraulic Station
It is controlled by gear pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
Power:5.5kw
Hydraulic oil: 46#
Components: The system includes a set of hydraulic tank , a set of hydraulic oil pump, four hydraulic pipes.and two sets of electromagnetism valves.

Electric Control System of 950mm Arc Glazed tile roofing making machine pillar frame:
Feature:
1.Adopted PLC , frequency converter , Delta touch screen from Taiwan to ensure high speed with stability, precision and lifetime.
2.Other electric element are Panasonic

Counter
One counter gauges length, pulses, and decides length.
Omron encoder for length measurement.
Products receiving tables
It adopts welded steel and supported roller to transmit the products.
Accessories
1.Easy damaged parts: conk 2 pcs, fuse-link 4 pcs
2. Rubber mat 1 pcs;
3.Bolt spanner 1 pcs
