OEM/ODM Supplier Highway Guardrail Sheet Roll Forming Machine – T-grid roll forming machine – Zhongtuo Detail:

T grid rolling forming machine (4)_副本

Brief introducton of T-grid roll forming machine

Cangzhou zhongtuo cold roll forming machine factory developed two types T grid machines for making various main T girds, there are fully automatic version and half automatic version. In this page, I will mainly introduce the fully automatic version.
The reason why we called it full automatic T grid machine is that this machine could help you make T gird without person intervention, from roll forming to punching, this machine could make all perfect and fast.  The machine could make main T gird in the speed of 16m/min. T-grid roll forming machine could be used to make the main T grid, cross T grid. Each type and each size need one set of rolling machine.As on the T grid, there are many connection holes needed to be punched, the machine could be divided into two types: fully automatic T grid machine with punching done by machine itself. The half automatic machine, you need to do the punching end, holes by hand separately.

The working process of full automatic main T gird roll forming machine.
Decoiler—leveling—roll forming machine—punching—cutting to length—runout table.

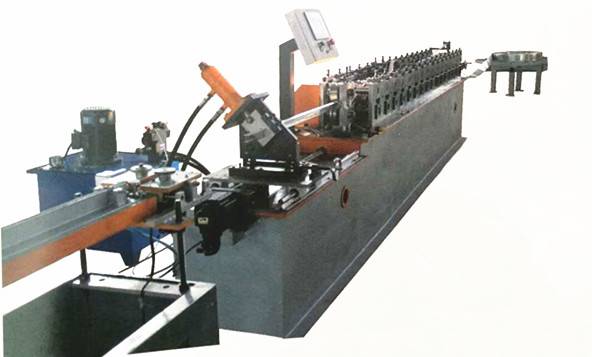

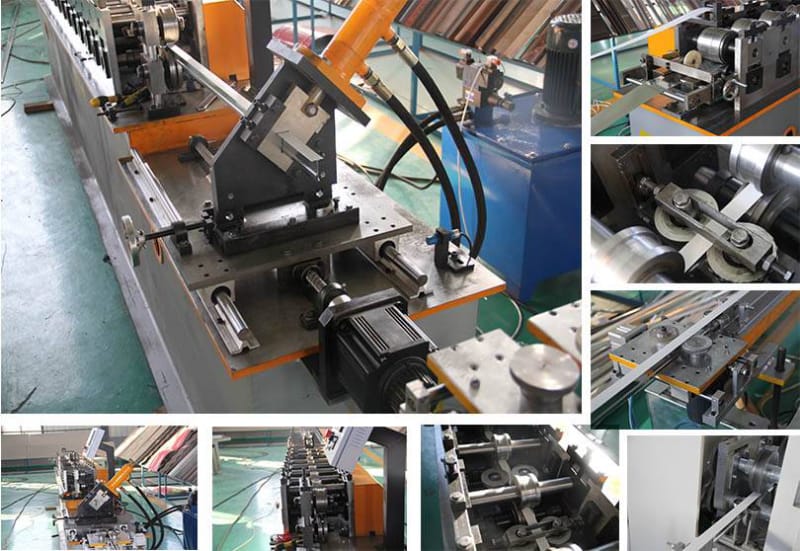

Full automatic T grid machine

Features of Zhongtuo main T-grid roll forming machine:
1. Full automatic and fast speed.
2. Low energy consuming, no matter from workforce or electricity.
3. Easy to operate, normally speaking one week then you can learn how to run it.
4. The main T grid made by our machine is beautiful in shape and solid when using.
Zhongtuo fully automatic T grid machine is composed by the following elements:
1. Single or double head decoiler for different types coil.
2. Main roll forming machine.
3. Hydraulic punching and servo cutting device.
4. PLC control station.
5. Runout table.

Here are some parameters of this full automatic roll forming machine for your reference:
a. Number of forming rollers: 16 stations
b. Shaft material: 45# steel with quenched treatment, precision machined, outer diameter: 40mm
c. Roller material: bearing steel with quenched treatment
d. Transport: by gear
e. Forming speed: 0-30m/min
f.Motor:4kw
g.Voltage:380v, 50Hz,3 phase (make according to customer needs )
h. Structure: independent stand

Looking for ideal  T-grid roll forming machine manufacturer & supplier ? We have wide selection at great prices to help you to get the target product. If you have any question, please contact us.

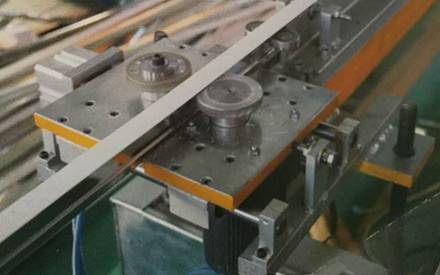

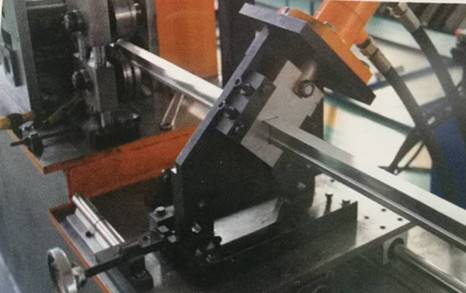

Product detail pictures:

OEM/ODM Supplier Highway Guardrail Sheet Roll Forming Machine – T-grid roll forming machine  – Zhongtuo detail pictures

OEM/ODM Supplier Highway Guardrail Sheet Roll Forming Machine – T-grid roll forming machine  – Zhongtuo detail pictures

OEM/ODM Supplier Highway Guardrail Sheet Roll Forming Machine – T-grid roll forming machine  – Zhongtuo detail pictures

OEM/ODM Supplier Highway Guardrail Sheet Roll Forming Machine – T-grid roll forming machine  – Zhongtuo detail pictures
