Hot Sale for C U Channel Making Machine - Net type wall angle roll forming machine – Zhongtuo Detail:



Brief introduction of Net type Wall Angle Iron Making Machine
Net type Wall Angle Iron Making Machine is one of the main cold roll forming machine. We are the professional manufacturer of V shape machine and have many experience. The whole production line is controlled by computer. And our Net type Wall Angle Iron Making Machine can be designed into different thickness, and different materials according to your drawing or samples.

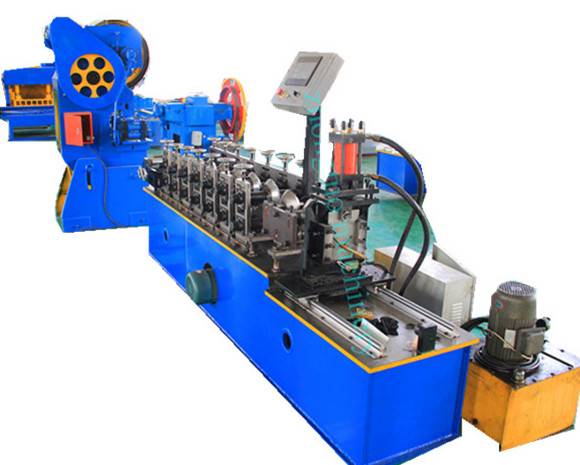

Main elements of Net type wall angle roll forming machine
1.Decoiler
2. Punching machine (as customer’s need)
3. Main roll forming machine
4.Shearing mechanism
5.PLC control system
6.Hydraulic station
7.Receiving products table
Reference drawing profile: sizes like 25×25, 30×30, could be made by one machine. But the depth of punching is done. If you want to change, we can make different punching machine for you.

netty type machine.jpgwall angle machine.jpg

Finished products:

Main element of Net type Wall Angle Iron Making Machine introduction

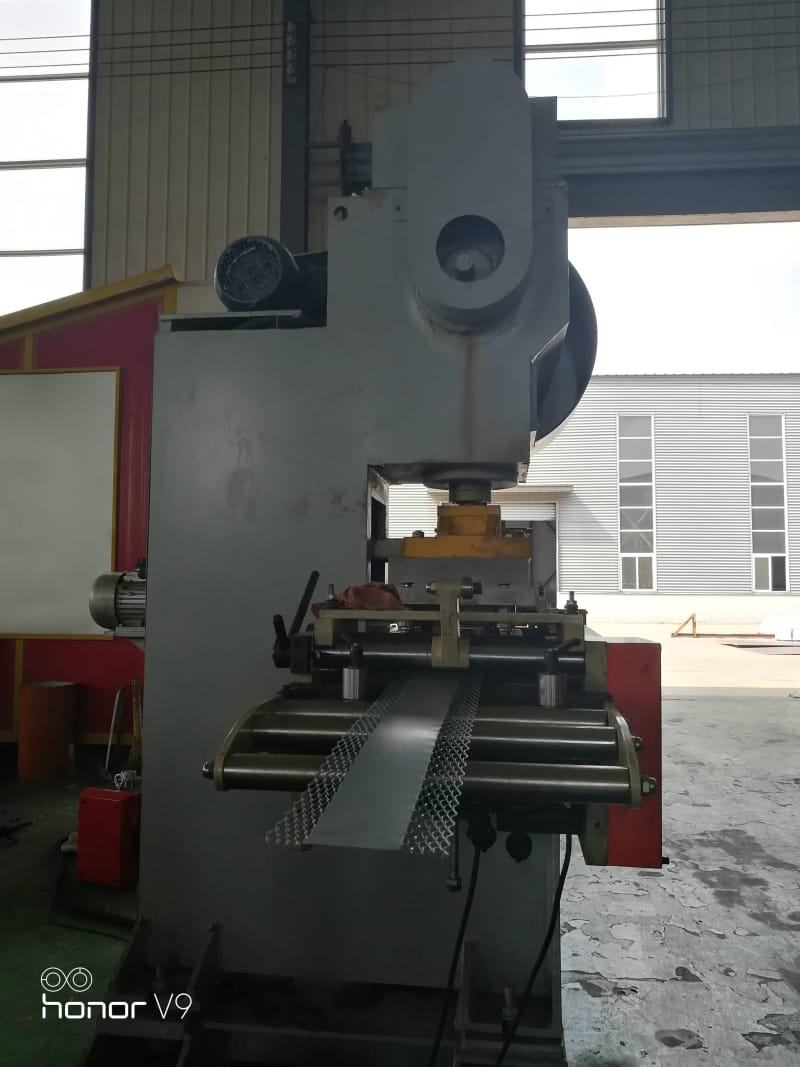

Punching machine for net type wall angle:Working speed:110-130 time/minMain power:3kwServo coil feeder with PLC control system

Punching Pressure: 40 Ton

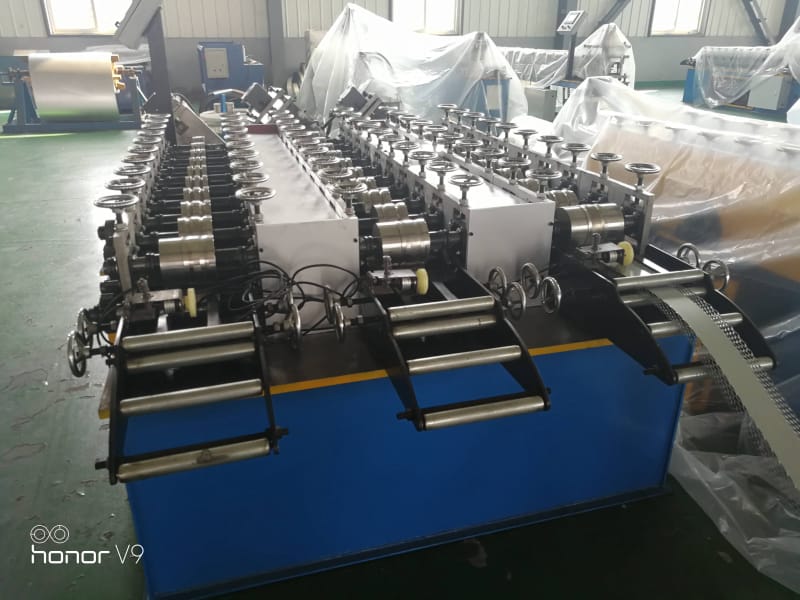

Main Net type Wall Angle Iron Making Machine:The different sizes can be produced on this machine by adjusting the feeding width.

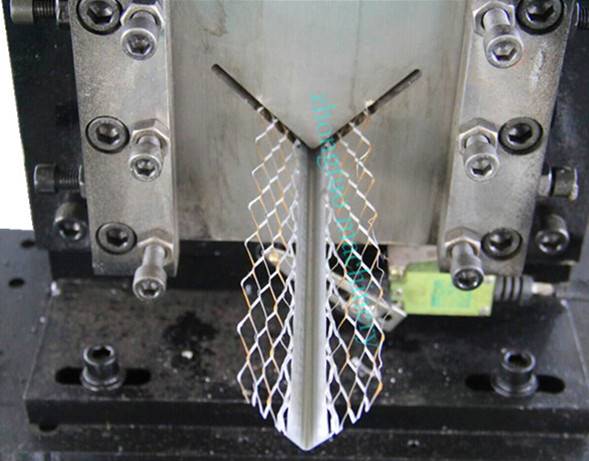

Shearing MechanismIt adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.Material of blades: Gcr12MoV quenched

Power supply : hydraulic power

Stroke switch :  non-contact photoelectric switch

Components: It contains one set of cutting tools, one hydraulic tank and one cutter machine.

Hydraulic StationHydraulic motor Power:3kwHydraulic oil: 46#

Components: The system includes a set of hydraulic tank, a set of hydraulic oil pump, and two hydraulic pipes. And two sets of electromagnetism valves.

Electric Control System1. Adopted PLC, transducer, touch panel from Delta Taiwan to ensure high speed with stability, precision and lifetime.2.Other electric element are Delta

3. Equipped with movable switch, air break, radiator, transformer & electric leakage protector for operation convenience and safety.

Note: need small size computer.

Products receiving tables

It adopts welded steel and supported roller to transmit the products.

 Looking for ideal Net type wall angle machine manufacturer & supplier ? We have wide selection at great prices to help you to get the target product. If you have any question, please contact us.
