Hot New Products Square, Round Oval Pipe Making Machine - High speed roofing sheet machine – Zhongtuo Detail:

Title: Hi-Speed Corrugated Galvanized Iron Roofing Roll Forming Machine
Keywords: Corrugated Galvanized Iron machine,  Iron Roofing Roll Forming Machine, Hi-Speed Roll Forming Machine
Description: Hi-Speed Corrugated Galvanized Iron Roofing Roll Forming Machine is designed to make the corrugated galvanized roofing sheet in batch.
Hi-Speed Corrugated Galvanized Iron Roofing Roll Forming Machine
Hi-Speed Corrugated Galvanized Iron Roofing Roll Forming Machine is for making the corrugated roofing sheet in batch fully automatically, the speed can reach 50 to 60 meter per minute. The speed increased up by Invert and double hydraulic system. All Rollers are made of high quality material and gone under Taiwan vacuum heat treatment which makes them stronger and have long lifespan.
Take the following drawing profiles to show how the machine is designed:
High speed roofing sheet machine 5 A (3)
The Hi-Speed Corrugated Galvanized Iron Roofing Roll Forming Machine is designed like the following pictures:
High speed roofing sheet machine 5 A (4)
Hi-Speed Corrugated Galvanized Iron Roofing Roll Forming Machine features:

  1. To make sure of the accuracy, all rollers are custom designed and machined precisely by state-of-the-art CNC machines placed inside the factory. Rollers are hardened through vacuum heat treatment (Taiwan technology) and chrome plating.
  2. For the machine, all we use the the molding frame thickness of 45mm. Frame are made by hardened steel and connected by bolts which make machinery sturdy,  easy to maintain, and avoid deformation while operating.
  3. As to the shearing part, we do the cutting from down to top and then it will not damage the surface of raw material. Shearing (Cutting) made by S50C or SKD, gone through vacuum heat treatment to have a longer lifespan.
  4. For the Control system with intelligent PLC and HMI touch-screen helps to operate machine simply and to create identical rollformed steel sheets which present your exact specifications.

High speed roofing sheet machine 5 A (1)
There are more details pictures of Hi-Speed Corrugated Galvanized Iron Roofing Roll Forming Machine for your reference:
High speed roofing sheet machine 5 A (2)

SPECIFICATIONS FOR HIGH SPEED STEP TILE ROOFING ROLL FORMING MACHINE

Machine specifcation

electric power (a phase , 50Hz 380v)

Kw

11-15

Machine Weight

Tons

9.0-11.0

Machine Dimensions(L H W)

m

10×1.8×2.0

Station quantity

stations

18-24

Raw materia

Steel Thickness(BMT)

mm

0.2-0.6

Coil Width

mm

914-1219

Material Strength



G300-G550

Production specification

Forming speed

m/min

7-8

Control system



PLC. HMI

Rollina transmission



Hydraulic, Inverter

Cutting and punching system



Hydraulic

Tolerance of steps

mm

±0.5

Length Tolerance

mm

±2

Why our Hi-Speed Corrugated Galvanized Iron Roofing Roll Forming Machine differ from others:
1) Easy in installation and maintenance.
2) Hardened structural steel and components provide long life and safe operational stability.
3) Adopting advanced world famous brand components in controlling parts, electric parts and operation parts.
4) Running in an automation, high durability and stability.
5) Compact design, meet custom demands.
For this machine, if you want to know more information, please contact us at any time.


Product detail pictures:

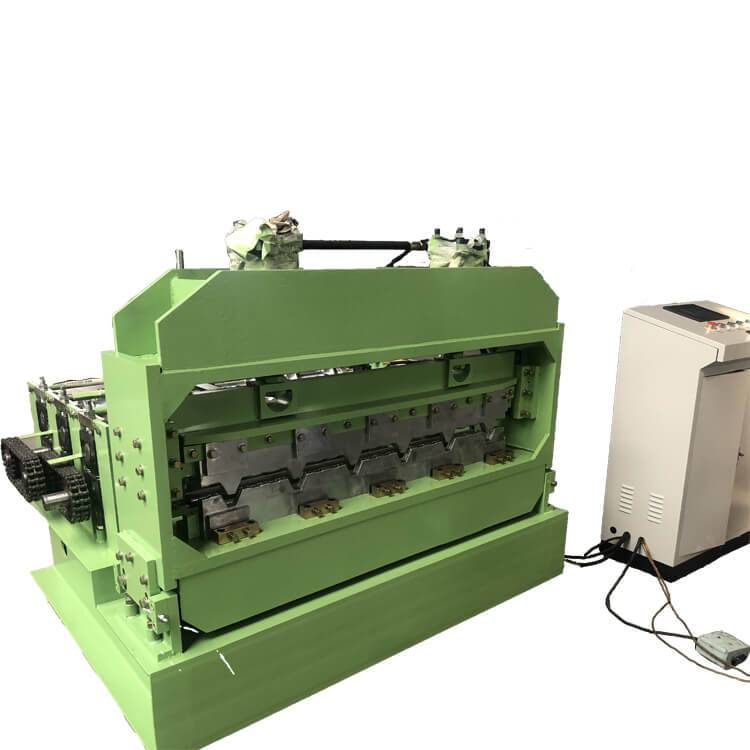

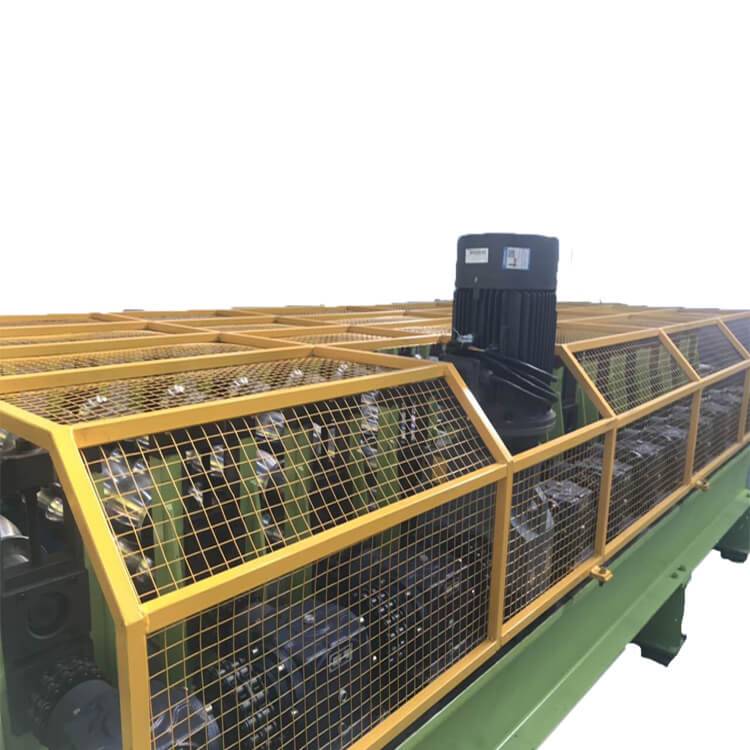

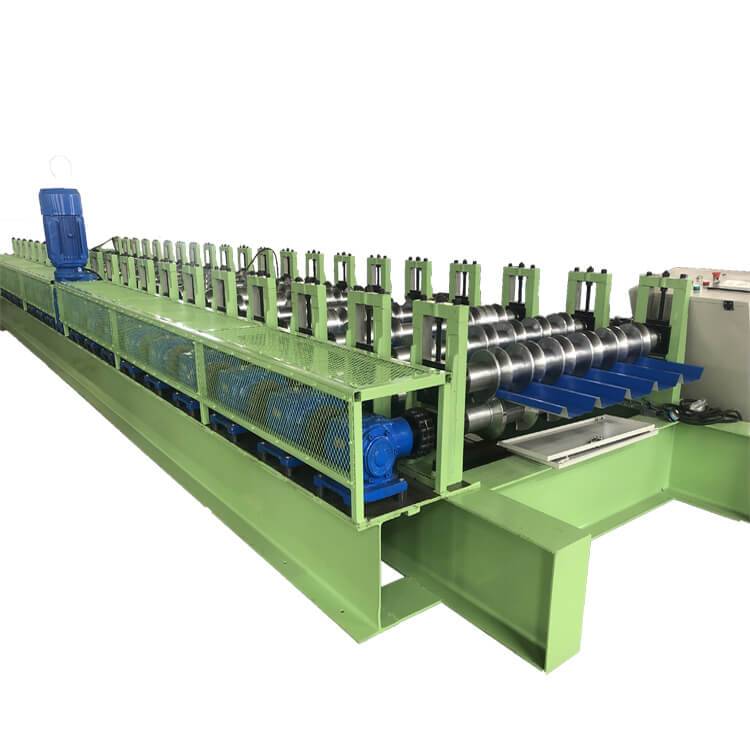

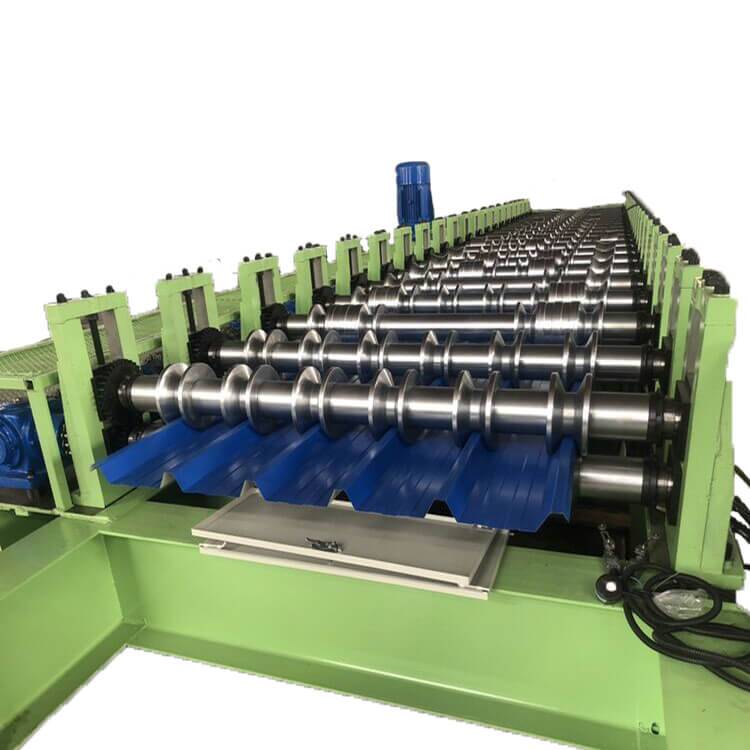

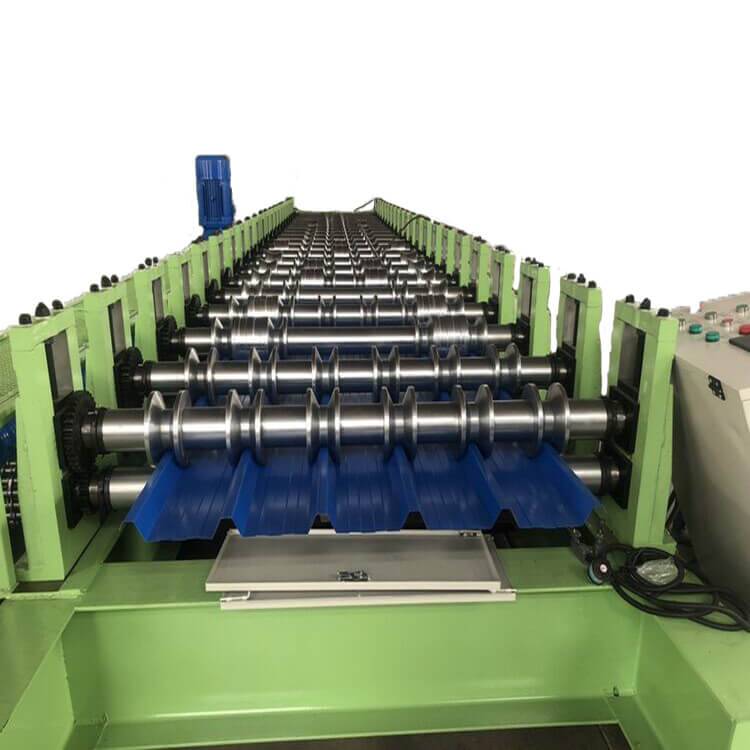

Hot New Products Square, Round Oval Pipe Making Machine - High speed roofing sheet machine – Zhongtuo detail pictures
