Short Description:

Description: Metal embossing machine could be used to processed thickness from 0.2 to 5.0mm metal sheet for further using in the industrial. For the metal embossing machine, we could design for you as single embossing machine, or cut to length machine with embossing machine or decoiler with recoiler whole production line. The machine working principle is by cold embossing or pressing. On the embossing rollers there is some upper and some pattern down and then after embossing, it can get the p...


Product Detail

Product Tags

Related Video

Feedback (2)

"Control the quality by the details, show the power by quality". Our enterprise has strived to establish a remarkably efficient and stable team team and explored an effective excellent control system for C Roll Forming Machine , Easy Operation Metal Deck Roll Forming Machine , Hf Welded Pipe Production Line , Please feel absolutely free to speak to us for organization. nd we believe we will share the best trading practical experience with all our merchants.
Good quality Galvanized Pipe Making Machine - Metal sheet embossing machine – Zhongtuo Detail:

Description: Metal embossing machine could be used to processed thickness from 0.2 to 5.0mm metal sheet for further using in the industrial. For the metal embossing machine, we could design for you as single embossing machine, or cut to length machine with embossing machine or decoiler with recoiler whole production line.

The machine working principle is by cold embossing or pressing. On the embossing rollers there is some upper and some pattern down and then after embossing, it can get the pattern you need.

Advantage of Metal Embossing Machine:

1. Customize, it could be customized according to your pattern.

2. High speed, from decoiler to recoiler, the Max working speed could reach 30m/min.

3. Easy to use, if the whole production line, it allows you to do the embossing fully automatic, from decoiler to recoiler.

4. Long time to use. Normally the embossing machine allows you to use more than 10 years.

5. Safty protection, the machine can give safty protection cover. Once it is something wrong, the machine will stop fully automatic.



Detailed parameters of this metal sheets embossing machine:

1. Roller specifications: DIA450~500mm, width: 1000~1800mm.

2. Take the roll surface hard chromium plating

3. Suitable for pressing plate: 2-6 mm

4.Frame steel plate welded structure, polished, tempering, machining, solid wall       plate Q235 90 mm thick

5. Pattern processed by laser engraving.

6. The pattern making: according to the buyer to provide the sample pattern

7. Pressure mode: hydraulic 50~100T.

8. Working speed: 1~20m/min, speed changed by frequency converter .

9. Voltage 380V/50Hz/3PH

10. Safety shield shell

11. Generous beauty of appearance

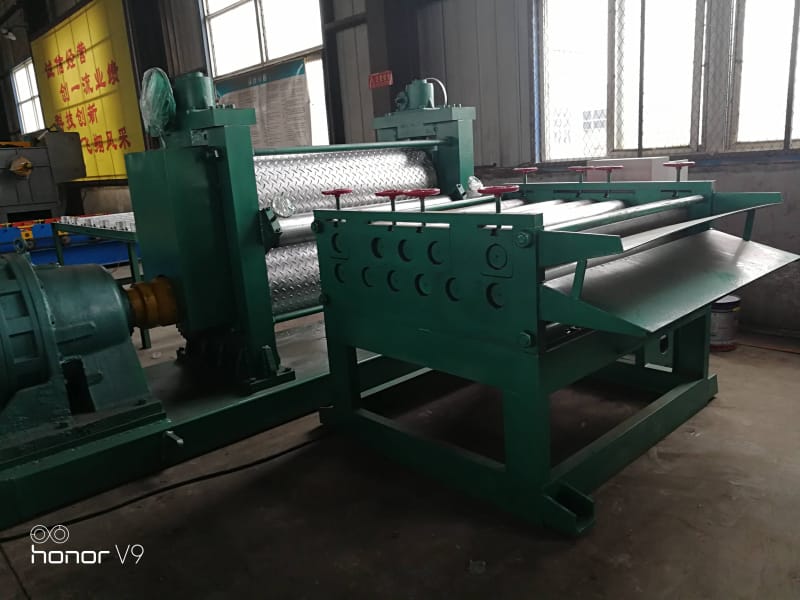

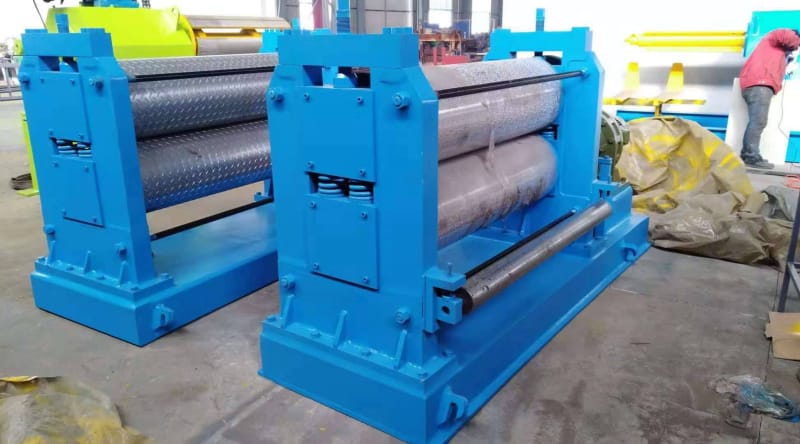

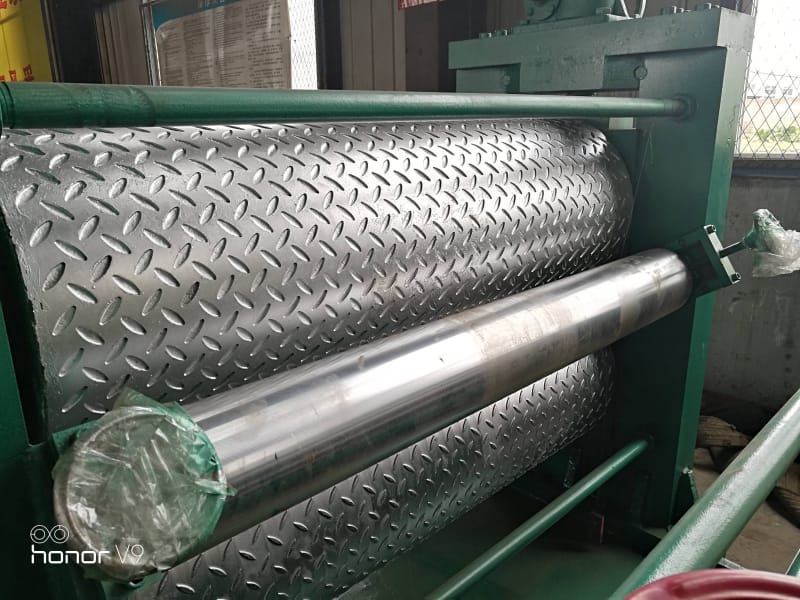

The main metal embossing machine pictures for your reference:

Where to use of the embossing sheet

The embossing sheet could be used for the surface of the door, wall or some decoration of some equipment. And they also could be used in the auto car or anti-slip floor.

FAQ:

1.Does one machine can only produce one style product?

Not exactly. Our machines can produce more kinds of by change their rollers.

2. Do you have after sales support?
Yes, we are happy to give advice and we also send skilled technicians to your place to support the technical guidance. We will let your machines running that in order to keep your business running.

3. What can you do if the machine broken?

Our machine’s warranty period is 12months. And if the broken parts can’t be repaired, we will send the new one to replace the broken parts. And the only thing you need to do is paying the transport costs.

If beyond the warranty period, we can through the negotiation to solve the problems, and we will supply the technical support for the whole life of the machine.

Looking for ideal Metal sheet embossing machine manufacturer & supplier ? We have a wide selection at great prices to help you get the target product. If you have any question, please contact us.
