Fully automatic Heavy duty purline machine stacker for puline thickness above 3.0mm

Fully automatic Heavy duty purline machine stacker

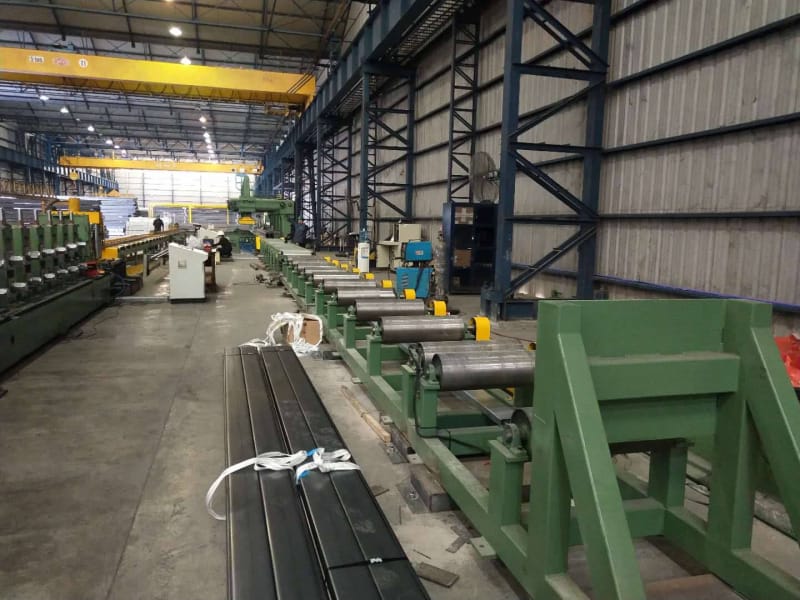

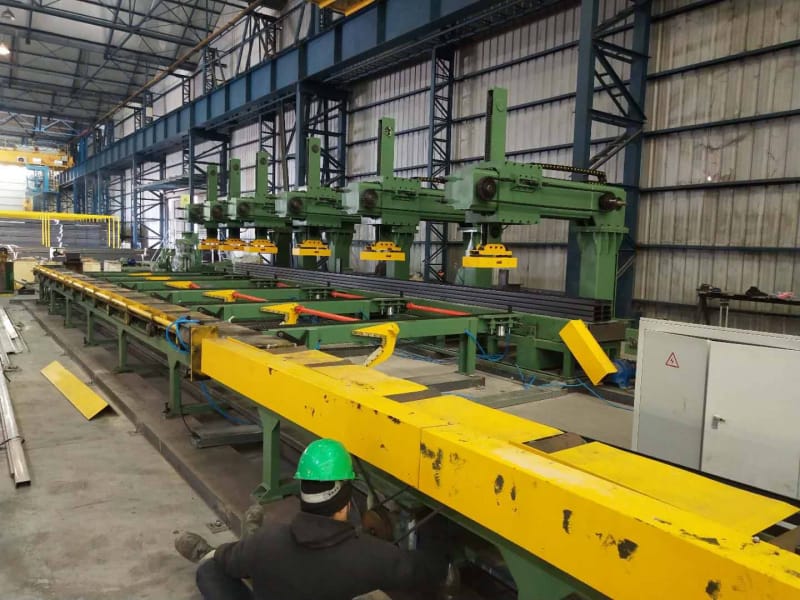

 Fully automatic Heavy duty purline machine stacker for puline thickness above 3.0mm is also called as the intelligent automatic feeding table -40 meters translation intelligent automatic roller table. This type stacker is quite necessay for the C purline machine whose thickness is above 3.0mm and the sizes are quite big. Then the machine weight will be quite heaveir for wokers to package. By the stacker, you can package C puline very well. Here are some pictures for your reference:

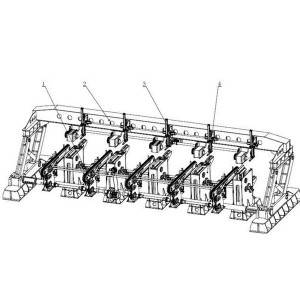

Take the 10 meter smart palletizer for example:
The equipment consists of a blanking roller, a reverse chain, a flattening mechanism, a suction cup palletizing, a plate chain conveying,
a fully automatic baler, a discharge roller, and a discharge chain. The device has the advantages of high degree of automation,
efficient stacking of strokes, and the like.

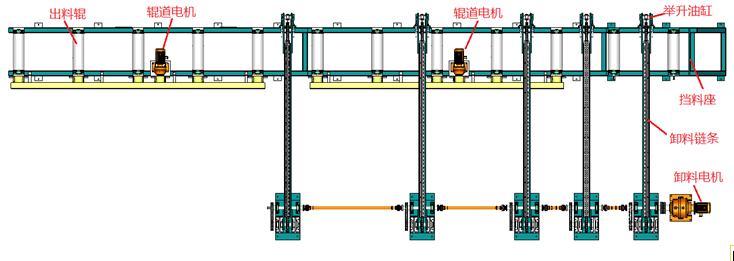

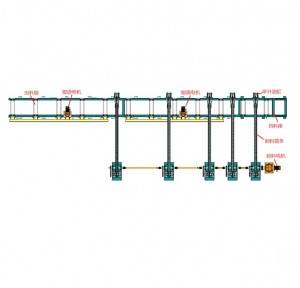

The unloading roller path is driven by the conveying motor to drive the conveying roller to transport the profile.
After the profile reaches the position, the blanking cylinder drives the pushing plate to push the profile out.
The flattening mechanism is composed of a base, a flattening cylinder, a guiding mechanism, a pushing plate,
an adjusting hand wheel and the like. Before the profile is lifted on the reverse chain, the guide plate drives the
push plate to push the end of the row of profiles to the flush, ensuring that the end faces of the profile after the palletizing are flush.

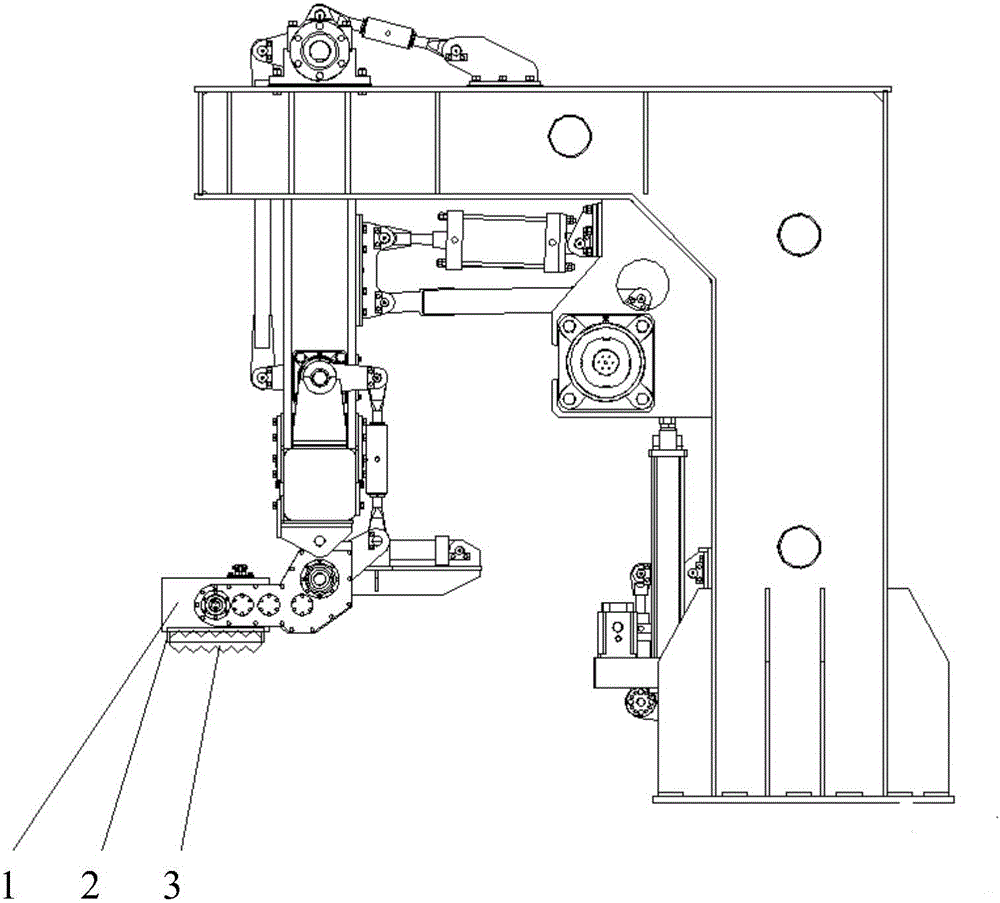

The suction cup palletizing assembly is composed of a suction cup assembly, a bracket, a column, a servo reducer and the like.
Driven by the servo reducer, the suction cup assembly can be moved up and down and left and right accurately. After the profile
s lifted on the tumbling track, the servo reducer controls the suction cup assembly to draw and transfer the profile to the chain
transfer mechanism on the carrier.

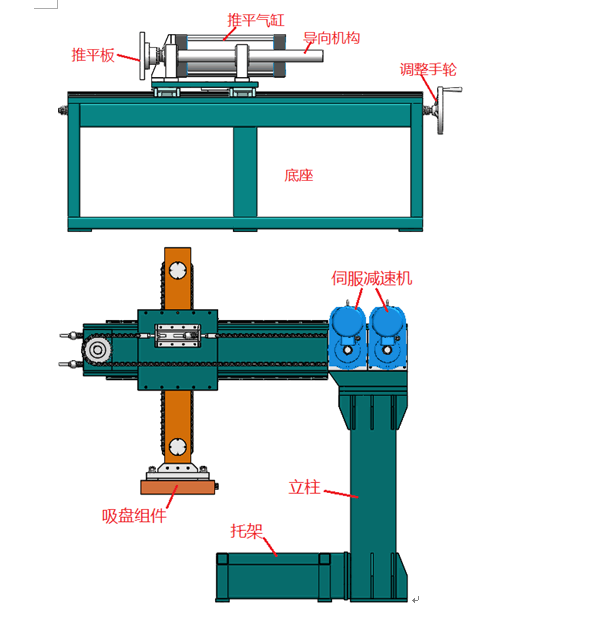

Fully automatic Heavy duty purline machine stacker for puline main elemnts for your reference：
The suction cup palletizing assembly is composed of a suction cup assembly, a bracket, a column, a servo reducer and the like.
Driven by the servo reducer, the suction cup assembly can be moved up and down and left and right accurately. After the profile
is lifted on the tumbling track, the servo reducer controls the suction cup assembly to draw and transfer the profile to the chain
transfer mechanism on the carrier.
The “bottleneck” problem in the production process was successfully solved, the product palletizing efficiency was greatly
improved, and the profile automatic fast palletizing was realized. The code package is reduced from 4-5 people per class to 1 person,
which greatly reduces the production cost. Because the code package process is “unmanned”, the labor intensity of employees is
reduced, and the production accidents are eliminated. occur.
Main parameters of the product of :
Section steel length: 5 meters – 10 meters
Steel plate thickness: 5.0
2. Process flow:
C-shaped steel conveyed by the roller conveyor
Cylinder push and unloading → keep flat placed → 180 degree flip → slot positive and negative bite → suction plate code  →
longitudinal output roller track → manual strapping → lifting
Item and description

NO Item Name Qty Note
1 Convery roller
2 Unload device  1set  The equipment is contained in the roller table and is pushed flat.
3 Levling device 1set
4 180 turing direction device 1set
5 Counting system 1set
6 Fedding coil devide 1set
7 Main body 1set
8 Order sheets devide 1set
9 Vertical roller table 2set
10 Hydraulic system 1set
11 PLC system 1set
12 Air pressure system, / User-supplied 1.5 cubic gas storage tank
Function description of  Fully automatic Heavy duty purline machine stacker for puline thickness above 3.0mm:
Roller blanking: the unloading device is flat and keeps flat
180 degree turning mechanism: Rotating device driven by motor, flipping C steel by 180 degrees
Slotting: The next C-shaped steel is translated, and the upper and lower U-shaped steels are snapped together for counting
and palletizing: after reaching the specified number, they are pushed into the lifting frame by the cylinder, and each layer is
arranged by the end-aligning device. According to the set package type, after the palletizing is completed, the whole package
of steel pipes is placed on the conveyor roller.
Transfer and bundle: the roller conveyor starts, transfer the whole package to the strapping station; manual strapping is completed
Cycle: After the whole package is removed, the elevator will return the material position and wait for the next package. The palletizing
between each package profile enables seamless docking to ensure continuity of work.
Electrical control adopts PLC program control, touch screen, realizes man-machine dialogue, and can be freely converted between
manual and automatic.
