Fixed Competitive Price Steel Door Rolling Shutter Slat Machine - Light keel villa machine-140 – Zhongtuo Detail:

Tile: Light steel housing machinery- C140 villa frame machine
Keyword: Light steel housing machinery, C140 villa frame machine
Description: Light steel housing machinery- C140 villa frame machine is designed to make C140 in batch fully automatically.

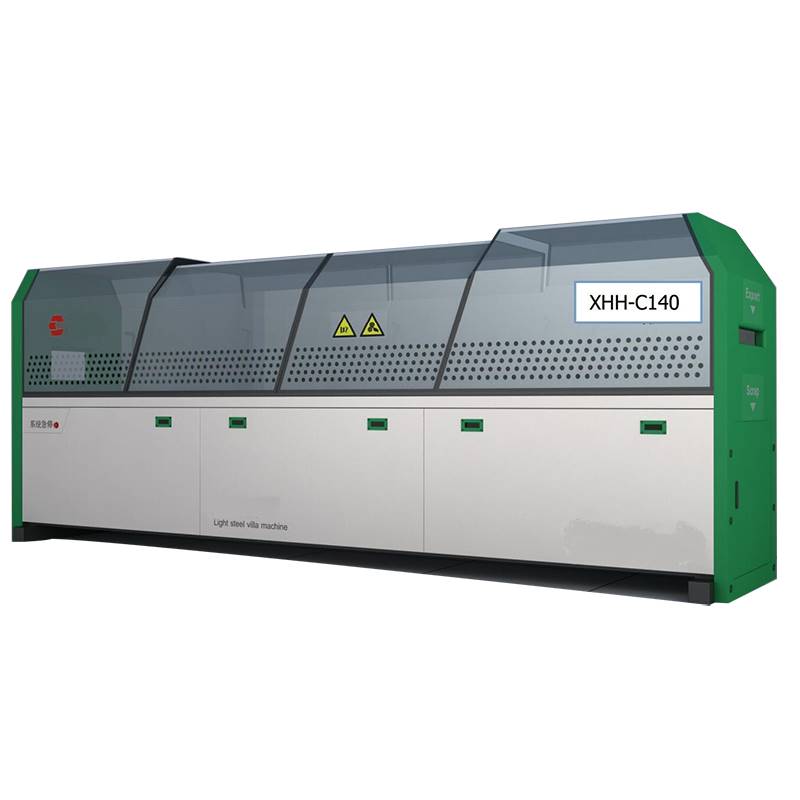

Light steel housing machinery- C140 villa frame machine
Compared with C89, C140 is much bigger than C89, C100 and others. C140 is good when you want to bulid higher layer building like 6 layers, 5 layers out wall stud and track. Here is C140 villa frame machine pictures for your reference.
C140 1
C140 villa frame machine working flow.
C140 b
C140 villa frame machine parameters for your reference:


Item Name					NO：LG-10	TYPE：894110	Servo motor driven
Parameters of the machine
1	Mian rolling machine	Coil		Upper and lower rollers + two sets of side wheels
		Main rolling machine		13 constitutive models (one of which is a waist-high forming 87-95 degree arbitrary roller set)
		Levling part		Two-axis two-way assembly
		Pinch		With transmission, upper and lower shaft gear drive
		Punching
		Shearing		Three-piece knife cut
2	PLC	Main PLC control system		1 Lenovo computer + 1 main control cabinet (mounted on the side of the device)
		Control software		LG-R1(Buliding master Nccontrol software )
		Laser coding		Matthews One-piece inkjet (double nozzle, waist-high spray on both sides)
		External controller		The wireless remote control controls and sets an emergency stop button on the front and rear guards of the device;
		Main accessories origin		PLC (Omron), relay (Schneider, France), proximity switch (Schneider, France), length encoder (OMRON), servo motor (OMRON)
3	Servo and hydraulic system	servo motor		Servo motor (7.5KW) + precision planetary gear reducer
		Hydraulic station		Hydraulic station power 7.5KW
				Fuel tank capacity 200 liters
		Main parts origin		Solenoid valve Germany Rexroth
4	Performance parameter	Roller		Roller material：GCr15
				Processing technology: after CNC machining, heat treatment to HRC58-60, and then refined polishing
		Shaft		material：40Cr
				Processing technology: after CNC machining, quenching and tempering treatment HRC28-32, and then finishing polishing
		Weight		3.8 tons.
Machin color			Customize
PLC control methods			There are two connection modes between the device and the computer: wireless connection and wired connection
Receiving table			Support rack (when online production, the finished material can be placed) With pneumatic side slip, one side set, storage table
Acceptance Criteria			Straightness: 10:1; Plate type tolerance: ±1mm. Length tolerance: ±1mm.

For the C140 villa frame machine, here are some installation pictures for your reference:

C140 8 C140 9
C140 10 C140 11

C140 12
For more information about the C140 villa frame machine, please feel free to contact us at any time.
