Factory wholesale Heavy Duty Shelf Back Panel Roll Forming - Angle Beads Roll Forming Machine – Zhongtuo Detail:

Title: Angle beads roll forming machine

Keywords: angle beads, roll forming machine

Description: Angle beads roll forming machine could be used to make wall angel beads in batch and fully automatically.

 Angle beads roll forming machine

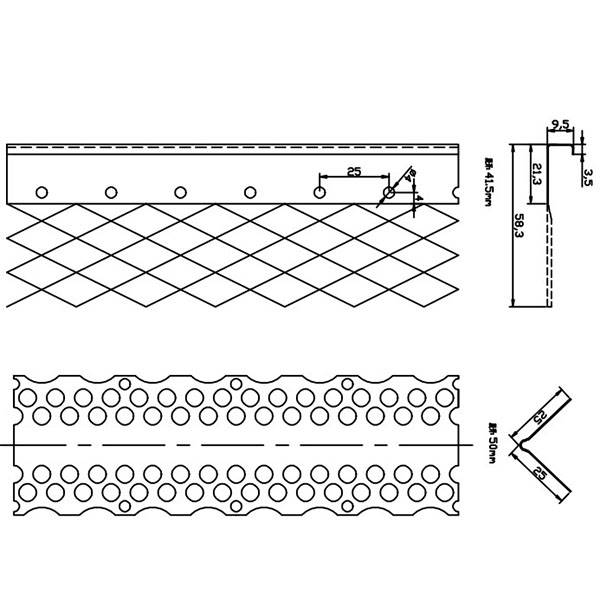

Angle beads roll forming machine could be used to make wall angel beads in batch and fully automatically. For the wall angle beads, it is also called draywall angle, it is used to protect the coner of wall.  Angle beads are strips of thin sheet metal or plastic that is used to cover the outside corners of plastered or drywalled walls. They are long corner strips that are usually made of solid material right at the corner and made of perforated or meshed material at the edges. In the market, there are many types wall angle beads, here are some pictures for your reference:

123

234

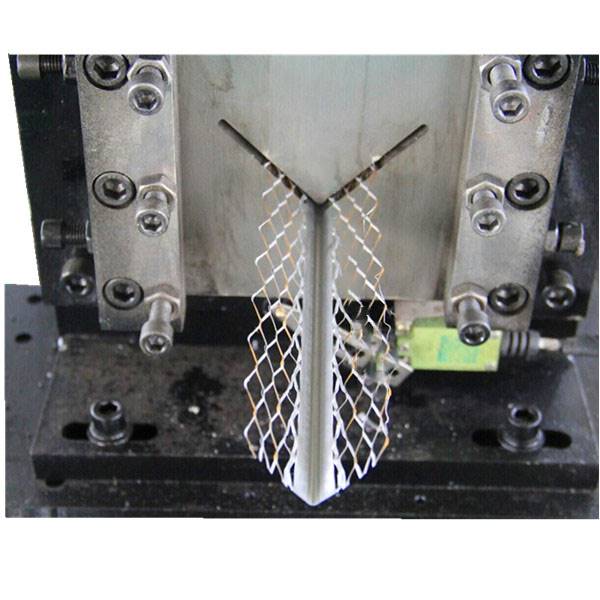

Angle beads roll forming machine is same like other roll forming machines, it can make the wall angle beads in batch. Different with other machine, it needs to do the punching first, it make the metal strip to holes or with diamond holes and then do the roll forming machine.  For the punching machine, our factory specially deisgned and got the pattern. The punching mold cuold be used repeately after one or two times fixing. Here are more information and parameters of the angle beads machine for your reference:

345

Punching machine for netty edge:

Working speed110-130 time/min

Main power3kw

Servo coil feeder with PLC control system

Punching Pressure: 25 Ton

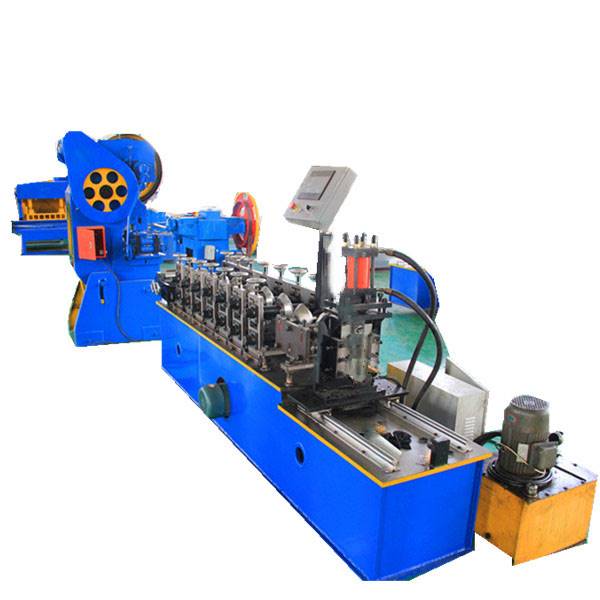

Main roll forming machine:

Length of the main part: about 3500х800х1400

Weight of main part:3 tons

Voltage : 380V/50HZ3Phase (as customer’s request)

Roller fixer : Guide column

Frame : middle plate welded

Memorial arch frame type

Frame thickness: 20mm

Drive mode: gear

Material of rollers: GCr12MoV

Material of shafts: 45# steel with tempering

Diameter of shafts: φ40mm

Number of rollers: 9 rollers

Main power: 3 kW

Cycloidal planetary gear speed reducer

The different sizes can be produced on this machine

by adjusting the feeding width.

456

Please learn more from the following machine working video:

把这个视频 内嵌到网页里面:

https://www.youtube.com/watch?v=WHZfxw1A4t8

For this machine, if you need to know, please contact us at any time.
