Factory supplied Tile Sheet Making Machine - Fully Automatic Zee Purline Rolling Forming Machine – Zhongtuo Detail:

Tile: Fully automatic Zee purline rolling forming machine

Keywords: Zee purline machine, rolling forming machine

Description: Fully automatic Zee purline rolling forming machine allows you to do the production in batch and fully automatic.

Fully automatic Zee purline rolling forming machine

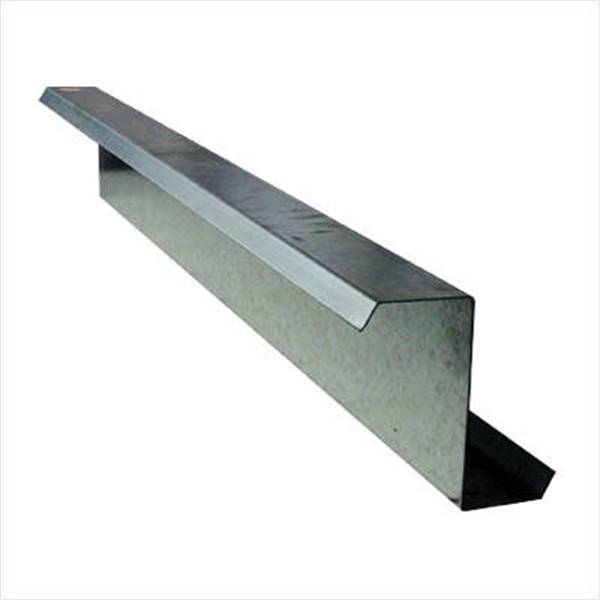

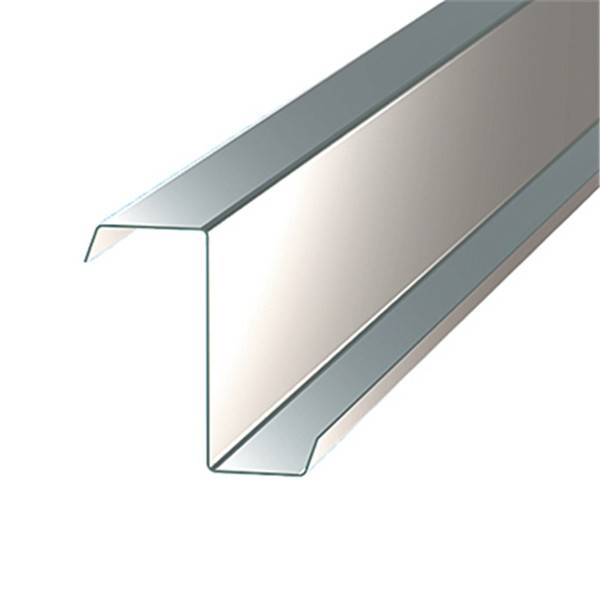

Fully automatic Zee purline rolling forming machine is professionally designed to make the Z purline in batch. It allows to do online punching, online punching logos. It composed by the following elements: decoiler, guiding platform,main machine of roll forming, cutting device, electric motor,hydraulic station,Delta PLC control system, run out table. Take the following drawing profile for example:

123

Z purline machine working process:

Decoiler→ → Feeding material into machine Roll forming machine Measure length Hydraulic cutting Finished Products

234

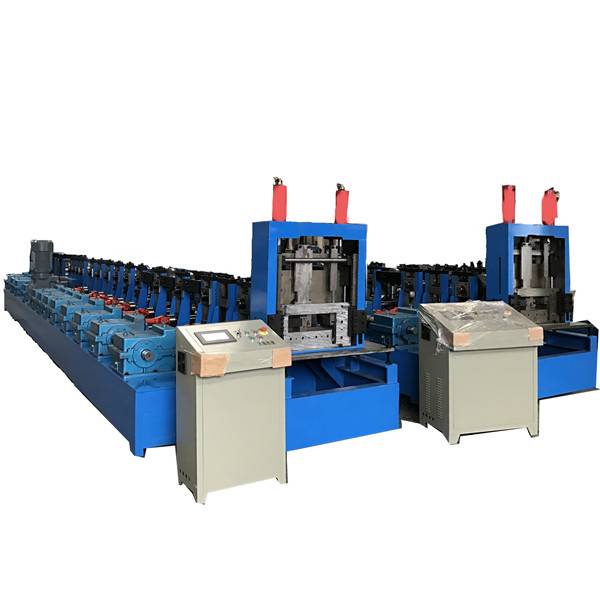

Zee purline rolling forming machine:

345

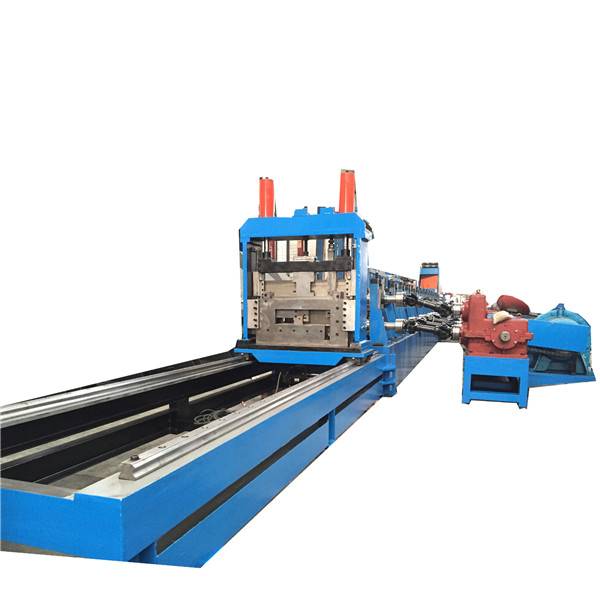

Fully Automatic Changed Z Shape Purlin Roll Forming Machine:

Main Technic Parameter:

 Size  7800*1500*1600mm
 Weight  9000KGS
 Voltage  380V/60HZ/3PH
 Hydraulic Motor Power  22KW
 Motor Power for auto adjustment size  0.37KW*2+0.75KW
 Motor Power for auto guide device  0.18KW*2
 Motor Power for auto adjustablehole distance device   0.18KW*2
 Forming Steps  13steps+3steps for reshaping
 Forming Speed  15m/min
 Edge for Z purline  15-25mm
 Height of Z Purline  30-70mm
 Width of Z Purline  100mm-300mm
 Forming Thickness  1.0-3.0mm
 Tolerance for cutting  ±2.0mm
 Tolerance for Forming  ±2.0mm
 Straightness  2mm/m
 Material for All Roller  Gcr15 steel with heat treatment
 Material of principal axis  High grade 45# forged steel
 Sprocket wheel  45# steel high-frequencies quench
 Cut-off system  Hydraulic cutting device
 Material for Blade  Cr12 mold steel with quenched treatment 60-62°C
 Material for frame of machine  Fine welded structural steel;
 Material for producing theZ Purline  GI Steel with Min.420 Mpa ( JIS G 3302 SGC440OR EN 10346 S350GD )
 Painted Color  Red or Customization

Main Accessories:

(1) Main Purline Forming Machine;
(2) 5 Tons Manual Uncoiler ;
(3) Automatic Guide Device;
(4) Hydraulic Motor System;
(5)PLC Computer Controlling System With Touch Screen ;
(6) Automatic Adjustable Hole Distance Device;
(7) Hydraulic Pre-punching Holes Device;
(8) Hydraulic Pre-cutting Device
(9) Reshaping Device;
(10) Rib Rollers;
(11) Run Out Table(10 pcs);
(12) Tools;
(13) Operation Manual,drawing for changing parts
(14) Free supply 10pcs bearing, 1.5m chain, 10pcs chain connection pins;
(15) Operation Manual.

Here is the Z purline using manual in working status.

456

Fully automatic Zee purline rolling forming machine working video for your reference:

内嵌昨天的那个Z purline 的视频

https://youtu.be/lpsxml9pNqg

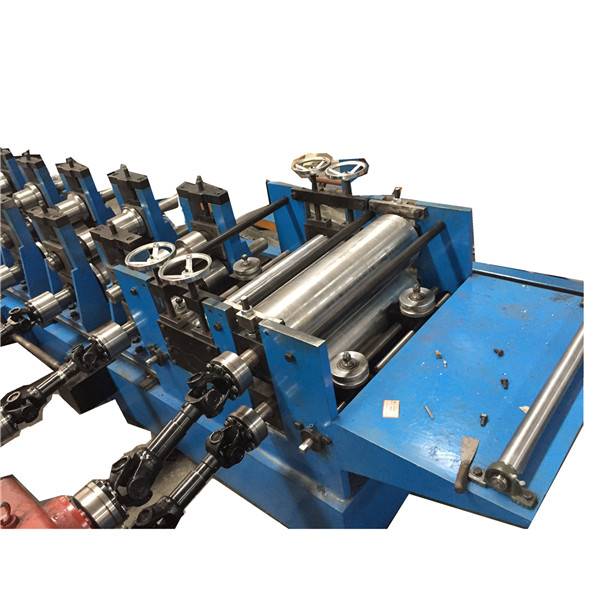

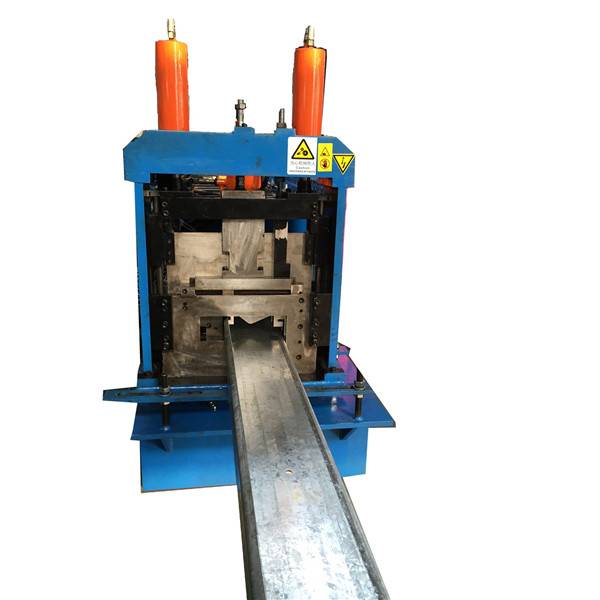

Product detail pictures:
