Discount wholesale Automatic Rain Gutter Making Machine - Drywall Stud & Track – Zhongtuo Detail:

Title: Steel Profile – Suspended Ceiling and Drywall Stud & Track making machine

Keywords: Stud & Track making machine, Drywall making machine

Descroption: Steel Profile – Suspended Ceiling and Drywall Stud & Track making machine could be used to make the Drywall Stud & Track in batch.

Suspended Ceiling and Drywall Stud & Track making machine

Steel Profile – Suspended Ceiling and Drywall Stud & Track making machine could be used to make the Drywall Stud & Track in batch. RUSUS steel channel is made from hot cold-rolled galvanized steel, and we adopt advanced process and technology to produce it. According to customer’s requirement, special specification is accepted for OEM. Take the following Suspended Ceiling and Drywall Stud & Track drawing for example and show you the elements of the machine:

 14_455

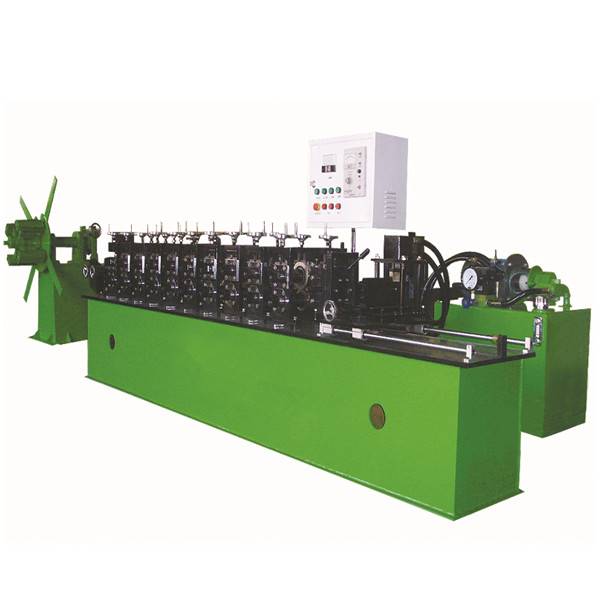

Steel Profile – Suspended Ceiling and Drywall Stud & Track making machine design like this:

 1254123154564

Suspended Ceiling and Drywall Stud & Track making machine parameters for your reference:

Processing material: GI

Material thickness: 0.4—0.8mm
Material hardness: 550 MPA—350 MPA
Formed width: 35mm

Working speed: 25m/min

 4545645 Un-coiler SystemUsage: It is used to support the steel coil and uncoil it in a turntable way.Passive uncoil pulled by roll forming systemLoading capacity: 1.5TUncoiling width: 300mm

Inner diameter: 450-550mm

 54545452 Entry BeachUsage: Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

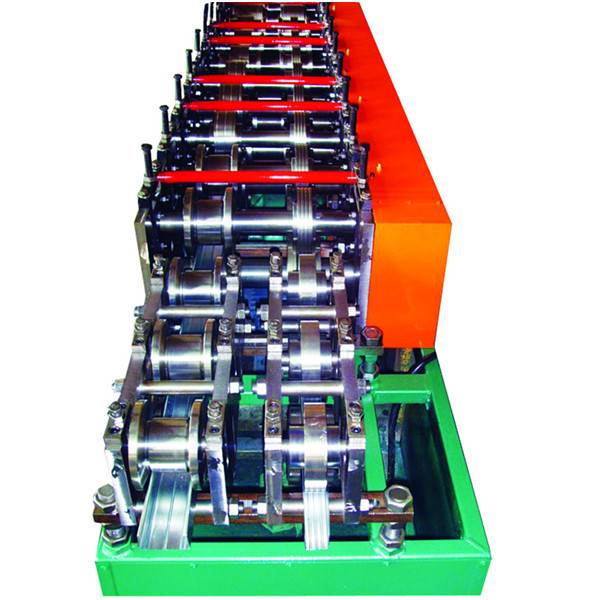

Main Roll Forming System

 4545

Feature: Ensure stability, precision and lifetime.Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, gear transmission( the first and the

Shearing Mechanism

56445

Function : Automatic cutting controlled by PLC
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Gcr12 quenchedPower supply : hydraulic powerFrame : Pillar style with rack & pinion systemStroke switch :  non-contact photoelectric switch
Components: It contains one set of cutting tools, one hydraulic tank and one cutter machine.



Suspended Ceiling and Drywall Stud & Track making machine feature;

  1. By this machine, you can make it work at the speed of 25 meter per minute.
  2. By the spacer adjustment, one machine can make many different types profiles.
  3. Long time to use and easy to use.
  4. Simple connect the electricity and then you can make it work easily.

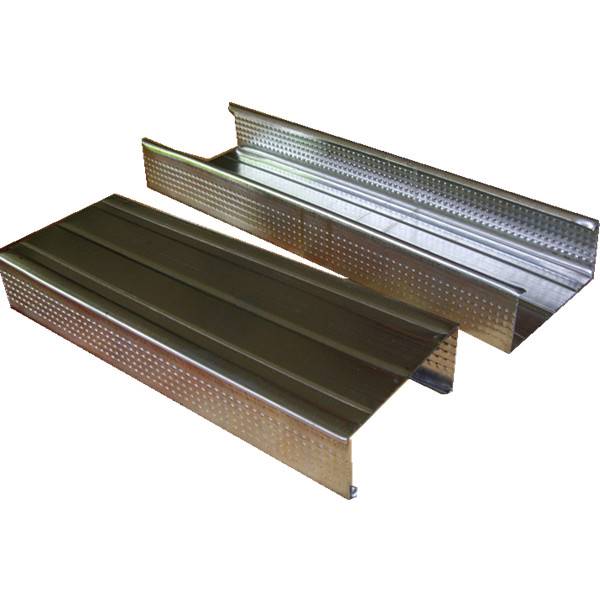

Description of galvanized drywall metal studs and tracks

Material Carbon steel or SS304 or SS316
Surface Treatment HDG(hot dipped galvanized ),Pre-galvanized,Electrical-galvanizing(yellow or white),powder coating(Black,Green,White,Grey,Blue)etc.
Lengths Either 10FT or 20FT or cut into the length according to clients’ requirements
Thickness 1.5mm, 1.8mm,1.9mm,2.0mm, 2.3mm,2.5mm ,2.7mm,
Holes 28*14mm,18*9mm,13.5*63mm,11*25mm,11*30mm etc
Style Plain or Slotted
MOQ 1000 Pieces
Packaging In Bundles and fasten with steel strips or by wooden pallets

Here is the installation of the drywall metal studs and tracks:

5265246


Product detail pictures:

Discount wholesale Automatic Rain Gutter Making Machine - Drywall Stud & Track – Zhongtuo detail pictures

Discount wholesale Automatic Rain Gutter Making Machine - Drywall Stud & Track – Zhongtuo detail pictures

Discount wholesale Automatic Rain Gutter Making Machine - Drywall Stud & Track – Zhongtuo detail pictures

Discount wholesale Automatic Rain Gutter Making Machine - Drywall Stud & Track – Zhongtuo detail pictures
