Container house top beam rolling forming machine Strong Verion to 4.0mm thickness

Container house top beam rolling forming machine Strong Verion to 4.0mm thickness

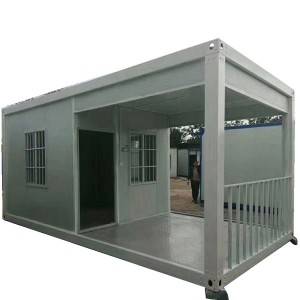

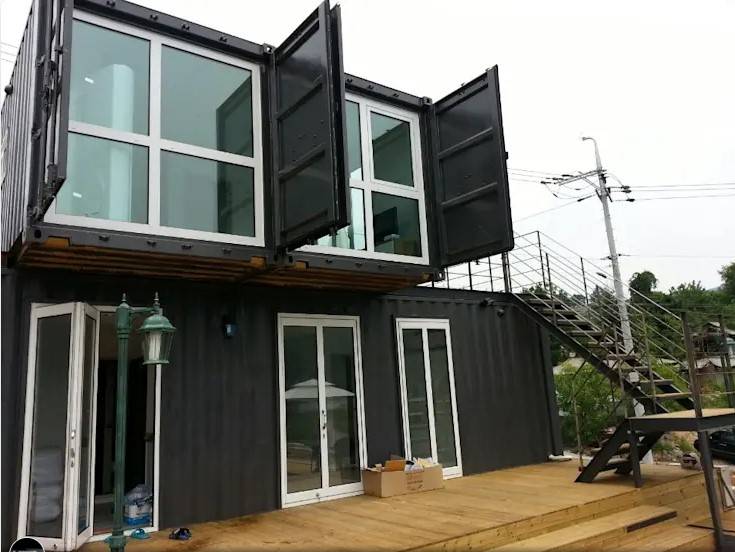

What is the container house?

Storage container homes, also called shipping container homes, offer a fast, sustainable and green approach to conventional building. Because the steel containers are built in a factory-controlled setting, they are standardized, durable and easy to transport. Home building crews get the most savings in time and materials since the product is manufactured, pre-fitted for installation, and structurally sound.

According to the loading weight difference, the machines of container house has two types light duty and heavy duty. In this article, we will talk the heavy duty type container house rolling forming machine.

The container house is composed by many parts, first we show top beam of container house. Here is the drawing profile for your reference:

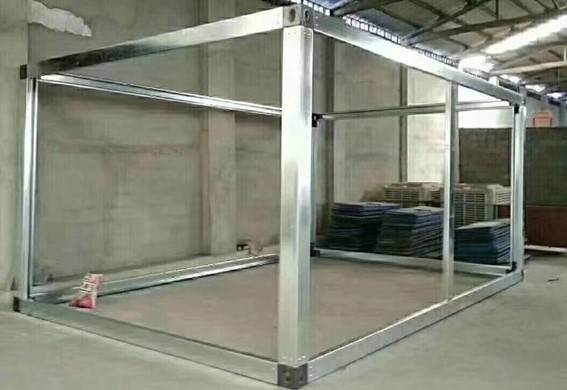

Container house frame picture：

For the frame if you need to make it to be very strong, the thickness of material need to be above 3.0mm to 4.0mm. Then the machine needs to be very strong.

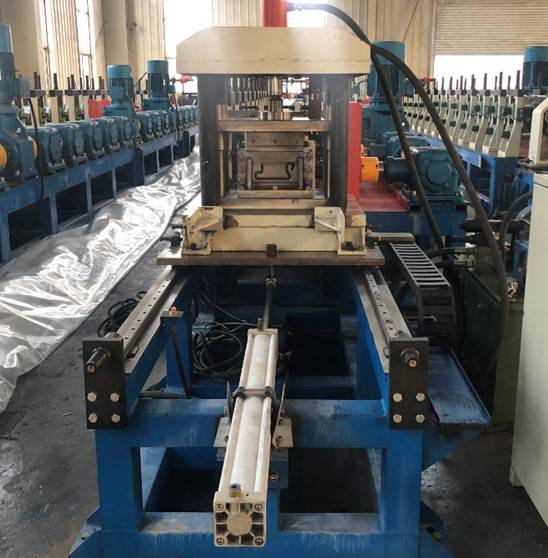

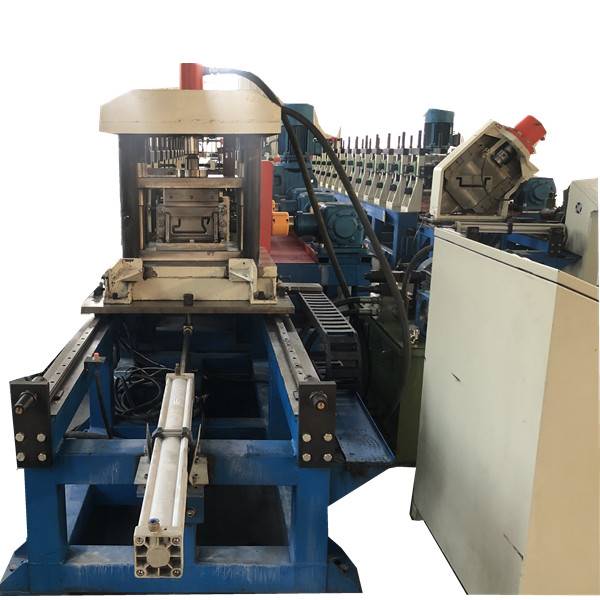

Features of Container house top beam rolling forming machine Strong Version to 4.0mm thickness:

1. Use gearbox as transmission, work speed fast and long time to use.
2. Use big motor and good brand like Siemens then it can give good and steady power to do rolling forming.
3. Use strong frame of molding frame thickness above 50mm, when working it can hold shaft and roller steady.
4. For machine roller, we use the material of CGR12move, very hard roller material for long time to use.
5. We use the posting cutting system with strong and big valve hydraulic jacks.
6. Shearing part, we use the servo control system for shearing fast.
7. As to the decoiler, you can choose manual one or hydraulic one as you wish.

Container house building process:

Here are the basic steps of the construction process:

• Cost – Find out the legal requirements of your property, including any necessary permits before starting construction. Get an accurate estimate of the cost per square foot to budget appropriately.
• Planning – Design the floor plan, elevation, and any conceptuals.
• Construction – Begin on-site preparations and off-site reinforcement/fabrication.
• Delivery – Coordinate site placement for containers.
• Retrofitting – Set the foundation, interior framing, insulation and drywall, plumbing, electrical, mechanical, and any additional features.
