Concealed fastening metal wall and fascia panel rolling forming machine

Concealed fastening metal wall and fascia panel rolling forming machine is designed to produce concealed fastening metal wall and fascia panels in batch fully automatically. Concealed fastening metal wall and fascia panels provide the toughness of metal while creating an attractive, flexible and functional wall or fascia panel. The panel is offered in fluted and flat panels, which are equally effective for new construction or retrofitting existing buildings. If your design calls for a smooth or flat wall or fascia, this series 12.0 Flat Panel is good for you. Flat Panel offers a 1 ¾-inch deep leg providing the perfect cavity for rigid board insulation. By the following drawing profile, let us check more details of this profile:

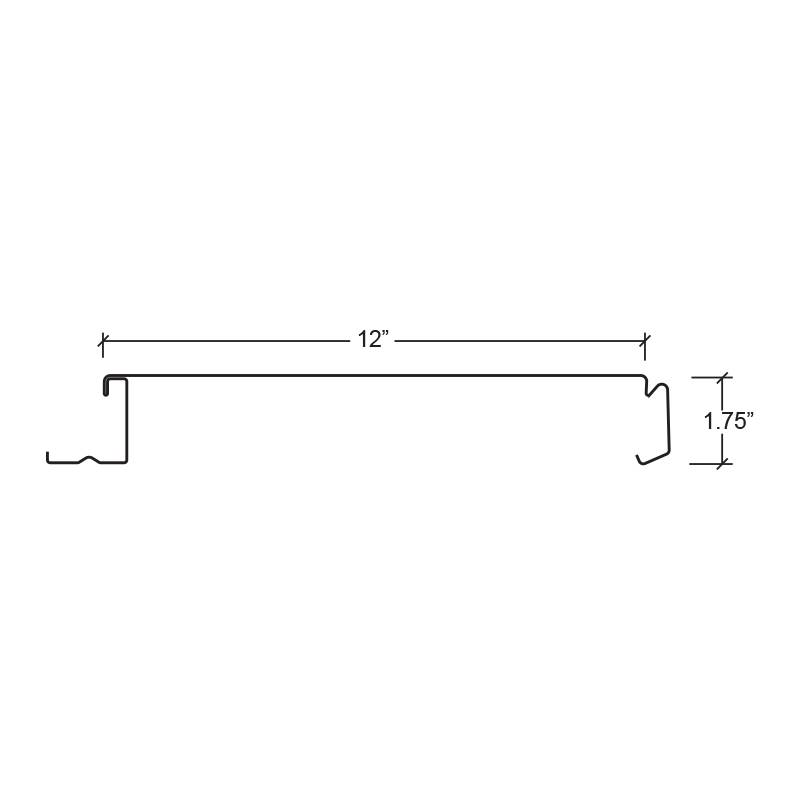

drawing profile of wall cladding panel



Concealed fastening metal wall and fascia panel installation effect:

 overlapping of wall cladding panel

 overlapping of wall cladding panel

Concealed fastening metal wall and fascia panel rolling forming machine design:

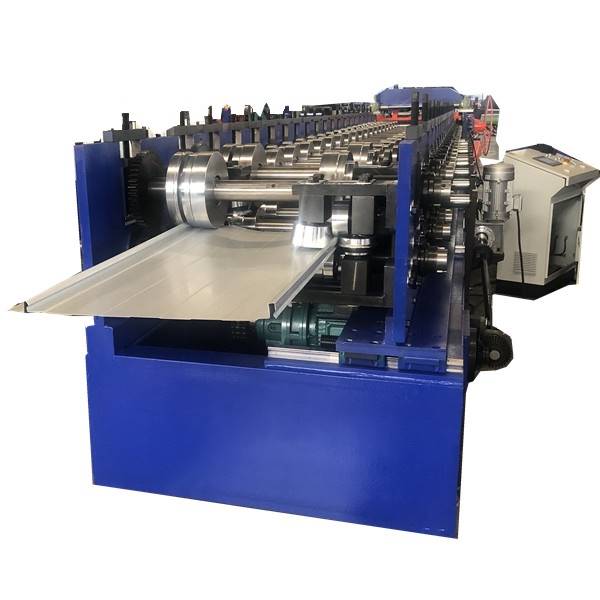

wall panel machine

Concealed fastening metal wall and fascia panel rolling forming machine basic parameters for your reference:

Machine elements

3 Ton manual decoiler, guiding rollers, pressing rib device, plate cutting and pressing device, rolling forming pressing rollers for the big edge, pressing shape and pressing molds, rolling forming and cutting device, receiving table, hydraulic station, PLC control system and others.

Machine design idea

The machine design, we use the linear system, the linear motor control the sizing changing.

The self-adjustable gusset machine is a single-roll forming unit that can produce a variety of width specifications. The machine is mainly composed of 3T passive loading frame, guiding device, 2-channel pinch roller, flat cutting device, forming host. , the discharge platform, hydraulic station, computer control cabinet, and other parts.

  • the upper shaft of the pinch device adopts the cylinder lifting, and the clamping force is automatically adjusted according to different thickness materials.
  • the whole machine is a chain-type chain transmission; the structure is firm and simple.
  • a machine can produce different waist height sizes. The specification change adopts the form of through-axis, which is fixed on one side, and the other side is automatically moved by the motor. Any fast and steeples change of width dimension, that is, the width can be changed in single digit size (such as 101, 102, 200. 250, etc.)
  • using the flat cutting process, no need to replace the cutting die when changing specifications



                  Main Parameters of the rolling forming machine
Pinch rollers 2 sets
Roller station 20 roller station
Frame and base middle plate frame
Roller style Full-axis
Roller material Roll material: 45 steel, surface hard chrome plated
Main shaft material 40Cr quenching and tempering
Shaft diameter 70mm
Main motor 5.5KW
Hydraulic station 3KW
Linear Motor 1.5KW

Concealed fastening metal wall and fascia panel rolling forming machine working video for your reference:
