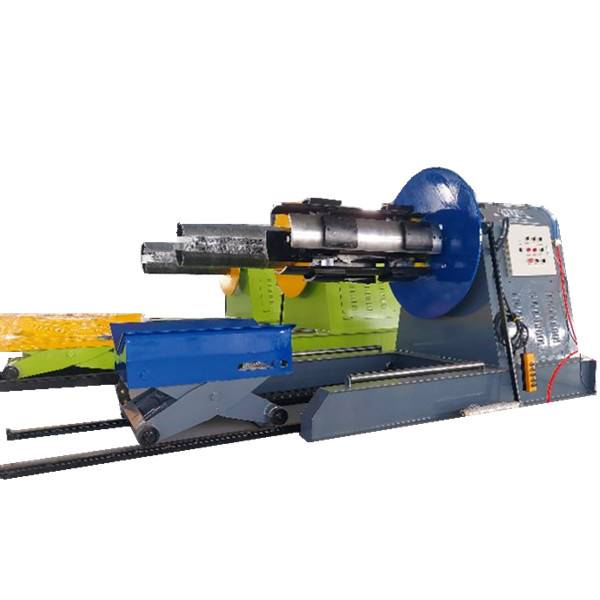

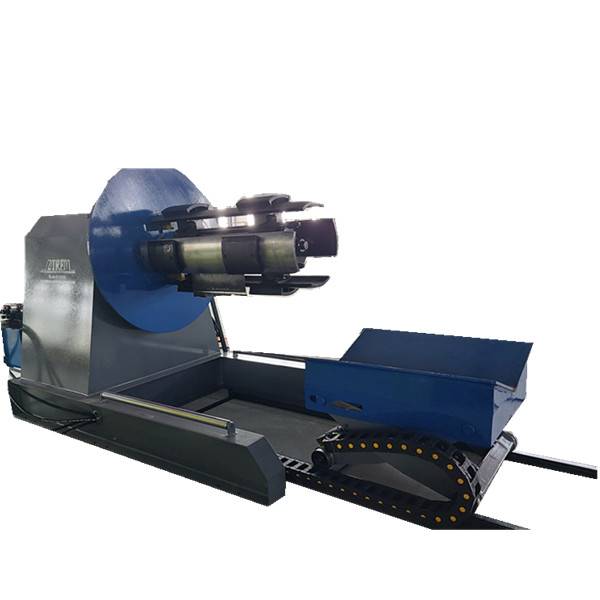

5T automatic hydraulic decoiler with pressing arm with loading car =7600 USD

5T automatic hydraulic decoiler with pressing arm with loading car is designed to load the coil Max loading weight is around 5 Ton. Pressing arm of decoiler is for pressing coil tight, when decoiler working in high speed, the pressing arm can press the coil tightly. Ans then the coil will not falling off.


How to use 5T automatic hydraulic decoiler with pressing arm with loading car

  1. Feeding operations will be forklift driver with by allowing the coil material and swell-shrink reel shaft center basic consistency, and then slowly put the steel coil forklift driver material on the loading car.
  2. the operator should rise or fall (hydraulic jack), the coil material to adjust to bilge shrink drum shaft center (namely: material can go in swell-shrink axis), this time the adjustment of decoiler top activities, the bearing decoiler keep in the same level.
    3. adjust the bilge nut make four pieces of bow type board, lhe swelling steel coil material, to avoid work roll material deformation and damage of steel.
    4. when steel coil tightly expanded material, after hand turn uncoiler, observe whether material turn freely, avoid coming up in the work of various kinds of hidden trouble.



    The 5T automatic hydraulic decoiler with pressing arm with loading car is composed by the following elements:

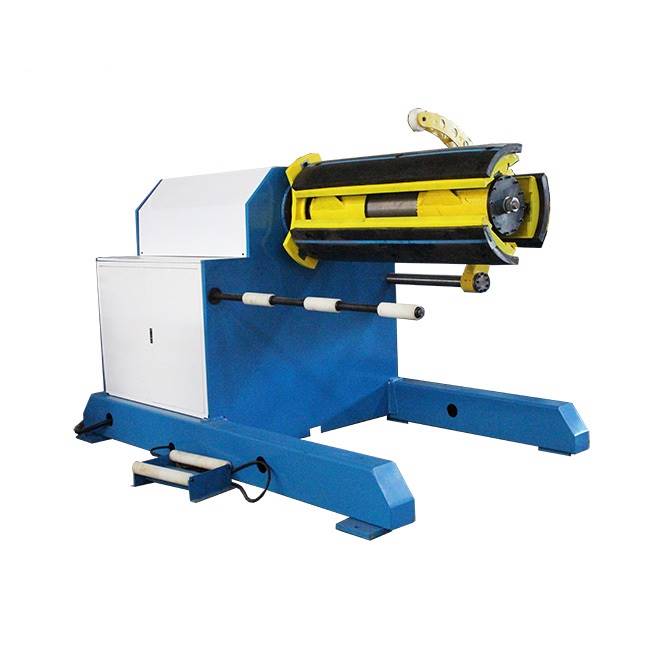

    Shaft of 4 segment for expanding:  4 segments can make the power more evenly to each piece. Meanwhile the back round wheel can protect the coil against of Scratch the surface of the coil. With the hole to fixing pad. The pad can help you enlarge the Min range.

图片2图片3

  1. With the brake for high speed slow speed running safely. Without this brake, the decoiler will not start and stop suddenly. By this way, we can enhance the safety level.


More specification for your reference:

1. Hydraulic entry coil car

◆ The Min gap between the coil car and the De-coiler front should be 500 MM to avoid any problems during coil loading.

 The car can move levelly and vertically, which is convenient for putting the steel coils into the     de-coiler.

◆It is driven vertically by hydraulic cylinder with four guide pillars.

◆The level movement is driven by cycloid motor.

◆The capacity of it can reach to 5 Tons (MAX)

It is used to lift up and down, move forward and back to make it easy to load the coils on decoiler. Hydraulic controls lifting, motor drives moving. The car is controlled on the auxiliary control panel. Its moving speed is 6-7m/min.When the coils on decoiler, the car will return back to the start position. It can also carry back the unfinished coils from decoiler.

2. Hydraulic de-coiler

◆ Support the coils and doing uncoiling.
◆The decoiler expands and shrinks by hydraulic and fit to the inner diameter of coils.

◆Motor drives the coils running and can do forward and do the decoiling with tension.

◆The core can ensure the expand range φ 508-610mm.

◆Structure: welding by the steel plates and profiled bar.
