2017 wholesale price Steel Frame Machine - Automatic Round Tube Roll Forming Machine, round rain pipe making machine – Zhongtuo Detail:

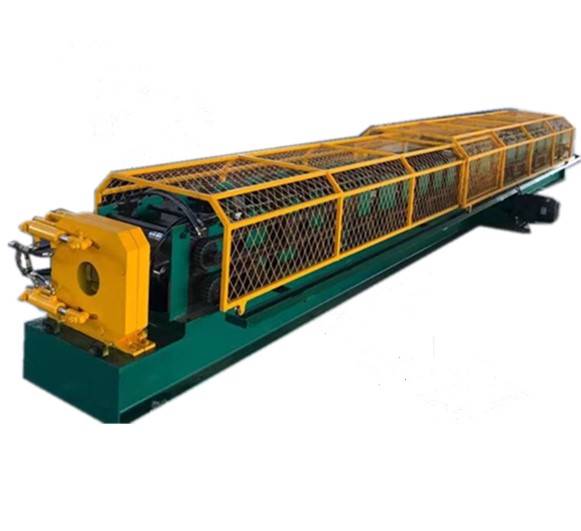

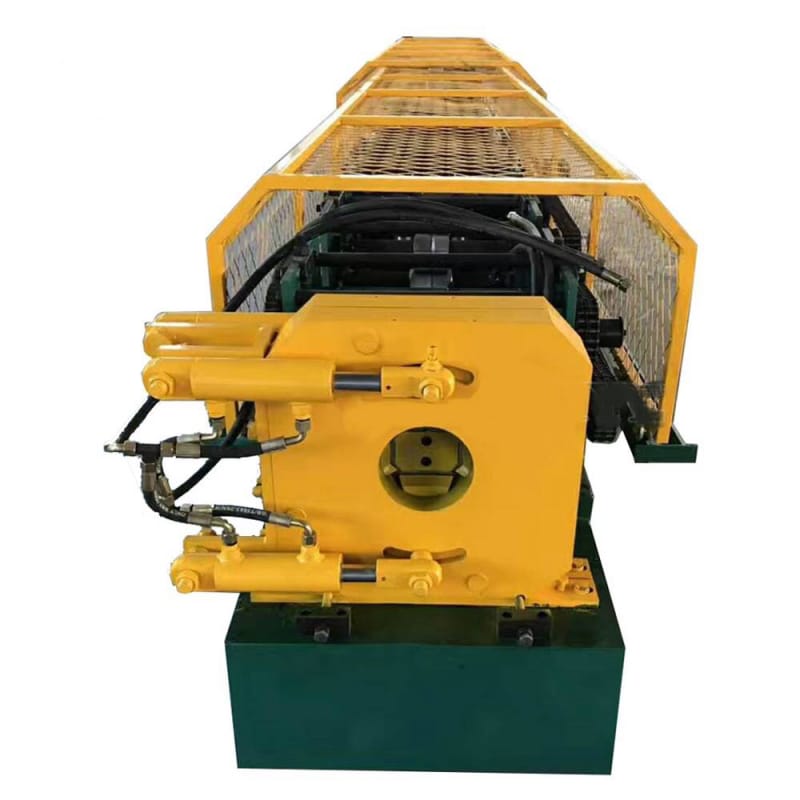

Automatic Round Tube Roll Forming Machine, round rain pipe making machine

Automatic Round Tube Roll Forming Machine, round rain pipe making machine could be used to make the rain pipes in batch fully automatic. Zhongtuo cold rolling forming machinery can supply complete production lines and machines according to your requirement. We supply many different sizes of water pipe machines with our auxiliary equipment. We have gained a good evaluation from users because of advanced technology, perfect quality and after-sale service.

rain pipe machine

 Rain pipes have many shapes like round pipe, square pipe and others. In this article, we show the round rain pipe, take the following drawing and pictures for your reference.

drawing profile of rain pipe



Automatic Round Tube Roll Forming Machine parameters for your reference:

NO

Item

Para

Memo

1

Suitable Material

Type

Aluminum, PPGI, cooper or others

Thickness

0.48mm -0.82mm



Yield Strength

<200MPa



Coil Width

261mm



2

Servo motor power

5.5KW



3

Hydraulic motor power

5.5KW

With the accumulator

4

Total power

11KW



5

Forming Speed

15m/min

Not including cutting, curving and necking

6

Electricity

480V, 60HZ, 3Phase



Automatic Round Tube Roll Forming Machine hardest partinterlocking

details of round pipe machine

Round pipe rolling forming machine stacker:

 pipe machine stacker

For using the round rain pipe making machine, you also need to use the pipe bending machine together.

pipe bending machine



In this article, we showed the machine with separated pipe bending machine.  In next article, we will show you the pipe making machine with the bending machine together whole line.

Please check the rain pipe machine working video here:


Product detail pictures:

2017 wholesale price Steel Frame Machine - Automatic Round Tube Roll Forming Machine, round rain pipe making machine – Zhongtuo detail pictures

2017 wholesale price Steel Frame Machine - Automatic Round Tube Roll Forming Machine, round rain pipe making machine – Zhongtuo detail pictures

2017 wholesale price Steel Frame Machine - Automatic Round Tube Roll Forming Machine, round rain pipe making machine – Zhongtuo detail pictures
