2017 wholesale price Hg76 Pipe Machine - High Speed Rolling Shutter Door Making Machine – Zhongtuo Detail:

Ttile: High speed rolling shutter door making machine

Keywords: high speed rolling machine, shutter door making machine, high speed machine

Description: High speed rolling shutter door making machine could help you make the rolling shutters in high speed of 50m/min full automatic

High speed rolling shutter door making machine

High speed rolling shutter door making machine could help you make the rolling shutter in batch fully automatic. The speed could reach 50m/min. The high speed machine is designed based on the normal speed machine 25m/min but different with the tranditional shutter doors, it has improved the following elements:

  1. Using independent strong frame stand.
  2. Using moving and flying shearing system.
  3. Adding turkey head to make the size and shape accuracy and beatiful.
  4. Add fully automatic receiving table.

In the following article, I will take a random drawing profile to show machine parameters:

123

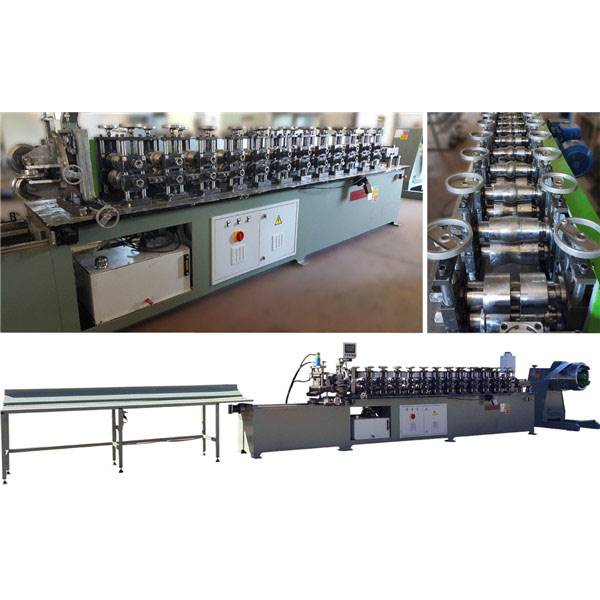

High speed rolling shutter door making machine pictures for your reference:

234

Here are some parameters of high speed rolling shutter door making machine:

Main roll forming machine system:a. Number of forming steps: 24 stationsB. Shaft material: 45# steel with quenched treatment, precision machined,The diameter: 80mmc. Roller material: Cr12 Mov with quenched treatmentd.Transport: by geare. Forming speed: 40m/min
f. Motor: 18.5 kw

g. Voltage: 380v, 50Hz,3 phase or customize

h. Structure: independent stand

i. Size of machine: 4.5m *0.8m *1.2m

Motor brand:Siemens

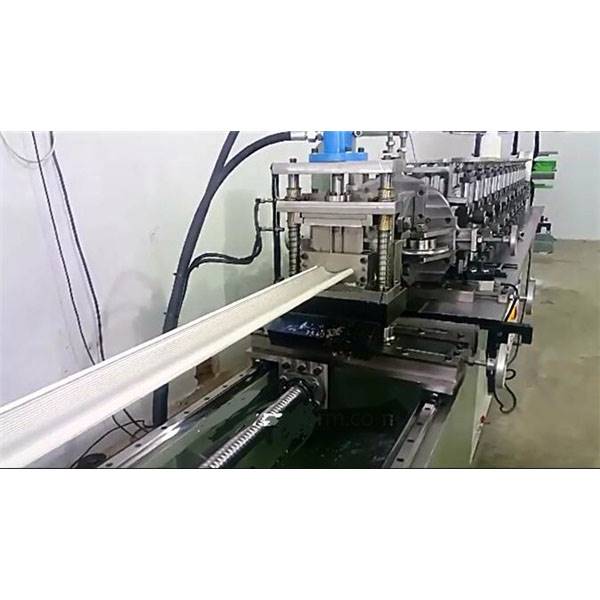

Flying Shearing system:The material of blade: Cr12Mov,Hardening HRC 58-62Length Tolerance:3m±1.0mm2 sets single head Turkshead, with 4 rollers*2setsHydrailic the infinite cutter to make sure the shearing speed and shapeFor making sure the sizes and make the cruve beautiful.

Servo motor drive to make it fast speed.

Adtvantage: lower noise and perfect shape, no stop shearing.

Hydraulic station:Hydraulic motor Power: 3kwHydraulic oil: 46#Hydraulic pressure: 12 MpaBrand: Bosch
Components: The system includes a set of hydraulic tank, a set of hydraulic oil pump, and two hydraulic pipes. And two sets of electromagnetism valves.Hydraulic station with water cooling down system as when machine working at high speed, hydraulic oil is not so powerful, we need to make it cool down.

For this machine if you want to know more information, please contact us at any time.
