2017 High quality Rain Gutter Down Pipe Making Machine - Butterfly holes Upright Heavy Duty warehouse Storage Adjustable Rack Steel slide pallet rack rolling machine – Zhongtuo Detail:

Title: Butterfly holes Upright Heavy Duty warehouse Storage Adjustable Rack Steel slide pallet rack rolling machine

 Keywords: Steel slide pallet rack rolling machine, rack rolling machine

Description: Butterfly holes Upright Heavy Duty warehouse Storage Adjustable Rack Steel slide pallet rack rolling machine is designed to make the Rack Steel slide pallet rack in batch fully automatically.



                  Butterfly holes Upright Heavy Duty warehouse

Storage Adjustable Rack Steel slide pallet rack rolling machine

Butterfly holes Upright Heavy Duty warehouse Storage Adjustable Rack Steel slide pallet rack rolling machine we designed with the following features:

1. Feeding guide mechanism: ensure the feed is stable and does not run off.

2. The base part is the main part of the rolling mill. It is welded by square tube and is covered with 20mm thick steel plate. The surface of the steel plate is processed by a milling machine to support the archway, ensuring that the bottom of the archway is stable, firm and beautiful.

3. Rolling: The key part of the molding machine consists of the main shaft, the archway, the rolls, the bearings and other components.

Spindle diameter: φ46mm Spindle material: 45#, quenching and tempering treatment

Roll material is Cr12, quenching hardness HRC58-65°

Roll processing technology: roughing – heat treatment – inner hole grinding – finishing

4. Transmission system (gear transmission): a reducer outputs power to the forming unit and transmits it to each spindle through the gear.

 Butterfly holes Upright Heavy

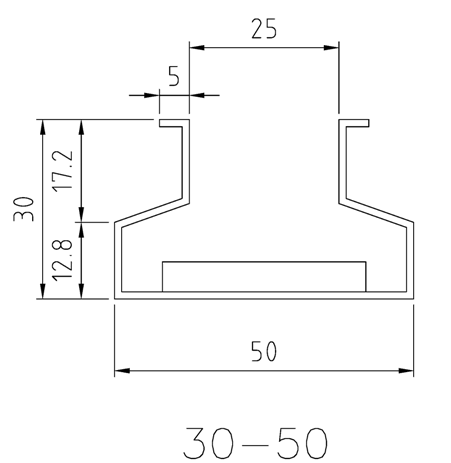

The finished products of Butterfly holes Upright Heavy Duty warehouse Storage Adjustable Rack Steel slide pallet rack:

 Butterfly holes Upright Heavy 2

Butterfly holes Upright Heavy Duty warehouse Storage Adjustable Rack Steel slide pallet rack rolling machine we design like the following pictures:

 Butterfly holes Upright Heavy 3

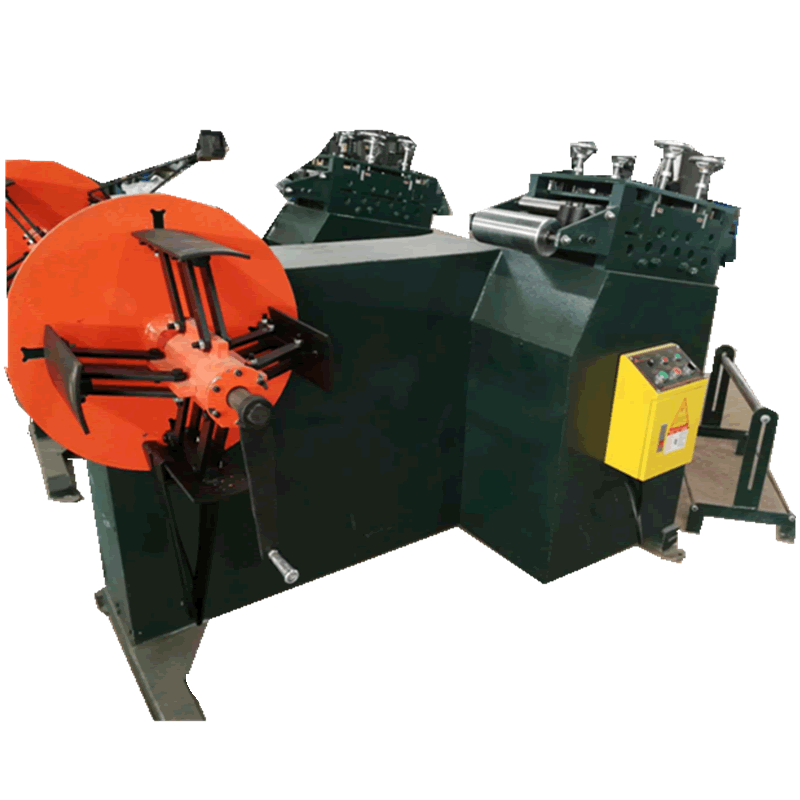

Production process: discharging rack…opening machine…punching…servo feeding…rolling forming part…hydraulic cutting (or bending at the same time)

 Butterfly holes Upright Heavy 4

Other elements of Butterfly holes Upright Heavy Duty warehouse Storage Adjustable Rack Steel slide pallet rack rolling machine:

 Butterfly holes Upright Heavy 5

Main process parameters of the Butterfly holes Upright Heavy Duty warehouse Storage Adjustable Rack Steel slide pallet rack rolling machine:

1. Rolling thickness: 0.6-1.0 mm, using strip coil material.

2, working speed: 0~6m/min

3, unit power: 7.5kw (power) hydraulic pump station 11kw with accumulator +5.5kw

4, the total power of the whole machine: 25kw

5, the number of forming groups: about 16 groups

6, length accuracy: less than 1 meter: ± 0.5mm

7, material width about: 128mm

Third, the main components of the production line

Servo feed punching system of the production line.

1. Punching mechanism: One punching die frame is configured according to different profiles. The maximum feed width is 200mm.

2. Servo feeder: Xinjie servo motor 2.3kw, feeding speed 16-30m/min, pinch roller high frequency processing hard chrome plating

 Butterfly holes Upright Heavy 6

Here are some installation pictures for your reference:

 Butterfly holes Upright Heavy 7
