18 Years Factory Door Frame Forming Machine - U channel machine – Zhongtuo Detail:

Title: C/ U/ L/W light gauge steel channel frame roll forming machine

 Keywords: steel channel frame roll forming machine, frame roll forming machine

Description: C/ U/ L/W light gauge steel channel frame roll forming machine is designed to make the C/ U/ L/W light gauge steel channel frame in batch fully automatically.

       C/ U/ L/W light gauge steel channel frame roll forming machine

Our C/ U/ L/W light gauge steel channel frame roll forming machine produce like Stud, track, Omega, Angle as so on. This C/ U/ L/W channel machine/ stud and track machine/ drywall profile roll forming machine working space are smaller than two seperate machines. And at the same time the price is also cheaper than two seperate machines. Take the following drawing profiles and then you can understand what we refer to:

456456

C/ U/ L/W light gauge steel channel frame roll forming machine feature:

  1. According to the market, now our light gauge steel channel frame roll forming machine have the following speed options: like 25 meter per minute, 50 meter per minute and 80 meter per minute.
  2. For the U channel, normall speaking it has fully autoamtic size changing and manual sizes changing by the adjustments of the spacer.
  3. One machine allows you to make many sizes and shapes.

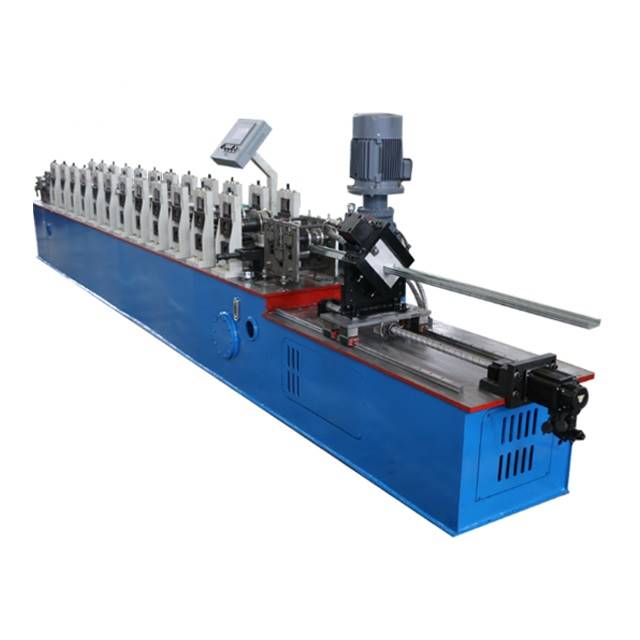

Here is the machine picture for your reference:

5456456

No. c u l w light gauge steel channel frame roll forming machine for roof
1 Suitable material PPGI/Aluminium sheet/galvanized sheet/various sheet plates
2 Thickness of coil sheet 0.3-0.8mm
3 Coil width as customer’s profile drawing requirement
4 Effective width as customer’s profile drawing requirement
5 Material of main frame welded by 6mm steel plate
6 Diameter of Soild shaft 40mm, high grade 45# steel
7 Roller Cr12
8 Thickness of middle plate Memorial archway
9 Forming station 12 rows
10 Drive type Gear
11 Power of main motor 5.5 kw, Lichao, Shanghai, with reducer
12 Servo motor 1.5KW
13 Forming speed About 25-30m/min
14 Hydraulic pump station 5.5 kw, 40# hydraulic oil
15 PLC DELTA(TAIWAN)/Mitsubishi
16 Material of cutting blades Cr 12, quenching 58-62℃
17 Frequency converter It has the advantage of slowing down before cutting, to ensure the

length accuracy ±1mm, far better than industrial standard ±3mm.

18 Switch CHNT
19 Frequency changer Delta,Taiwan

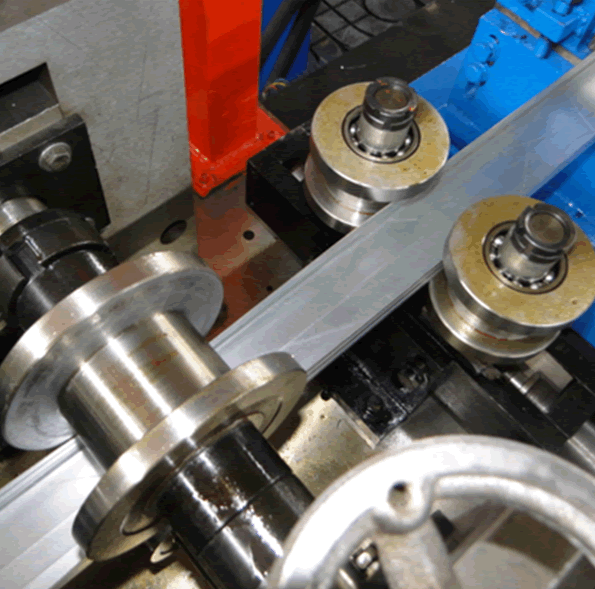

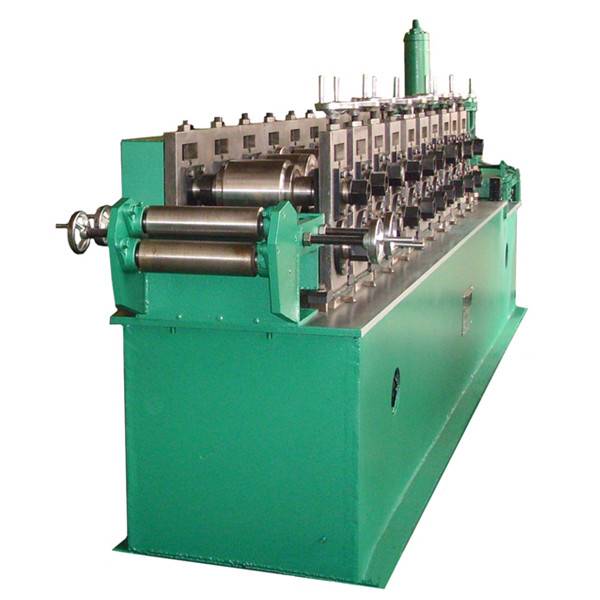

More detail pictures of C/ U/ L/W light gauge steel channel frame roll forming machine for your reference:

454564


Product detail pictures:

18 Years Factory Door Frame Forming Machine - U channel machine – Zhongtuo detail pictures

18 Years Factory Door Frame Forming Machine - U channel machine – Zhongtuo detail pictures

18 Years Factory Door Frame Forming Machine - U channel machine – Zhongtuo detail pictures

18 Years Factory Door Frame Forming Machine - U channel machine – Zhongtuo detail pictures

18 Years Factory Door Frame Forming Machine - U channel machine – Zhongtuo detail pictures
