100% Original Factory Water Gutter Roll Forming Machine - Light Duty upright pillar roll forming machine – Zhongtuo Detail:

Ttile: Light Duty upright pillar roll forming machine

Keywords: Light duty upright pillar, roll forming machine

Description: Light Duty upright pillar roll forming machine is designed to make the up right pillars in batch fully automatically.

Light duty upright pillar roll forming machine

Light duty upright pillar or warehouse shelf pilllar is adopted for manual access of lighter goods supporter. It can be matched with plastic containers stored more varieties of products, widely used in electronic industry and small parts warehouse, laying special rubber plate anti-static function by changing the spray or powder. It

has the characteristics of low cost, safety and reliability, simple assembly and disassembly characters. The light warehouse pillar can be used alone and it can also be freely spliced into various permutations.

The Light Duty upright pillar roll forming machine is designed to make the up right pillars in batch fully automatically. Here is one of the drawing profiles of Light duty upright pillars for your reference:

123

We use this design machine to make upright pillars:

234

For the Light Duty upright pillar roll forming machine parameters for your refernece:

Machine working process:

345

Main Roll Forming Machine:

1) Number of rolling stations: 16 rolling stations

2) Shaft diameter: 60mm

3) Shaft material: 45# steel after quenching.

4) Roller material: 45# steel after 62 to 65 degree quenching

5) Transmission method: chain

6) Motor Brand: Chinese famous brand MengNiu

7) Voltage: 380v, 50Hz, 3 phases or customize

8) Machine frame: Middle plate

9) Machine frame thickness: 20mm

10) Main power: 7.5kw

Hydraulic Shearing system:

1).Material: blade and mold material: Cr12 steel with quenched treated 60-62

2).Cutting system: advanced hydraulic drive, automatic cutting after forming, no distorting or wasting, high level safety factor.

456

Control system

1). Screen: Delta screen from Taiwan

2). PLC: Delta DVP14ES from Taiwan

3). Coder: ENC-1-1-1T-24 from South Korea

How to use of upright pillars of light duty:

567

For this machine, if you want to know more information, please contact me at any time.


Product detail pictures:

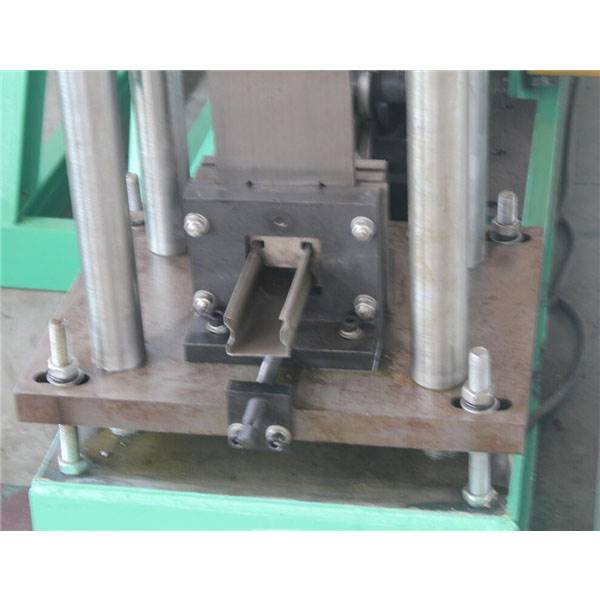

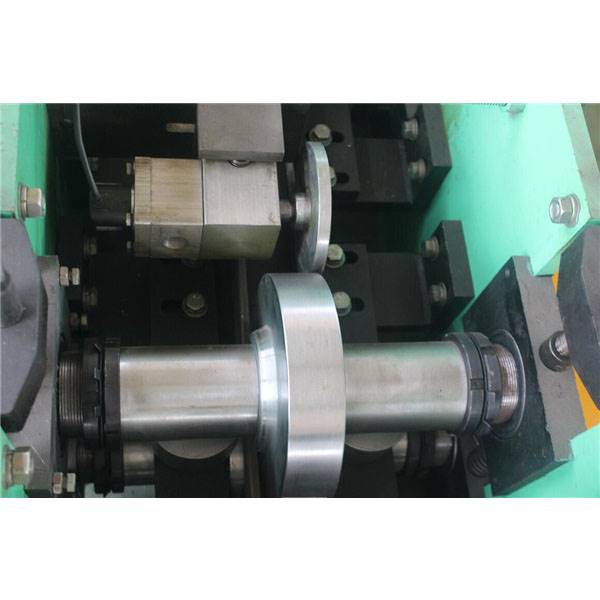

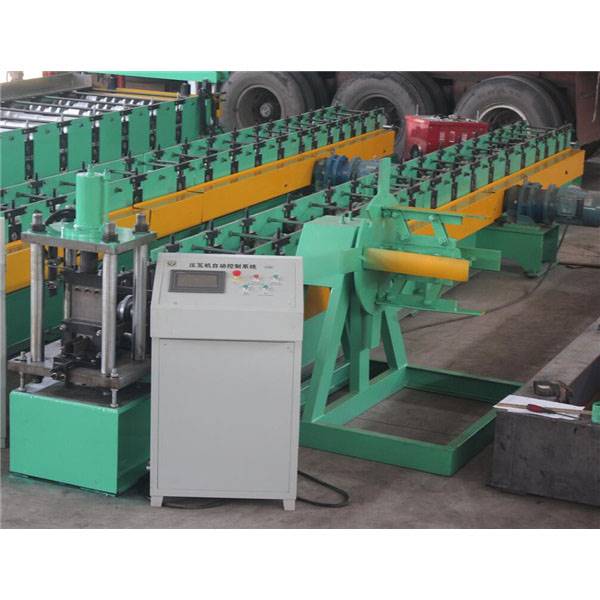

100% Original Factory Water Gutter Roll Forming Machine - Light Duty upright pillar roll forming machine – Zhongtuo detail pictures

100% Original Factory Water Gutter Roll Forming Machine - Light Duty upright pillar roll forming machine – Zhongtuo detail pictures

100% Original Factory Water Gutter Roll Forming Machine - Light Duty upright pillar roll forming machine – Zhongtuo detail pictures

100% Original Factory Water Gutter Roll Forming Machine - Light Duty upright pillar roll forming machine – Zhongtuo detail pictures
