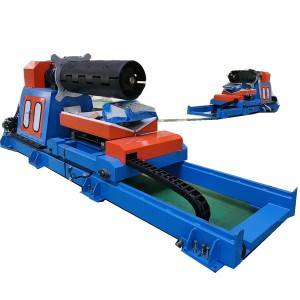

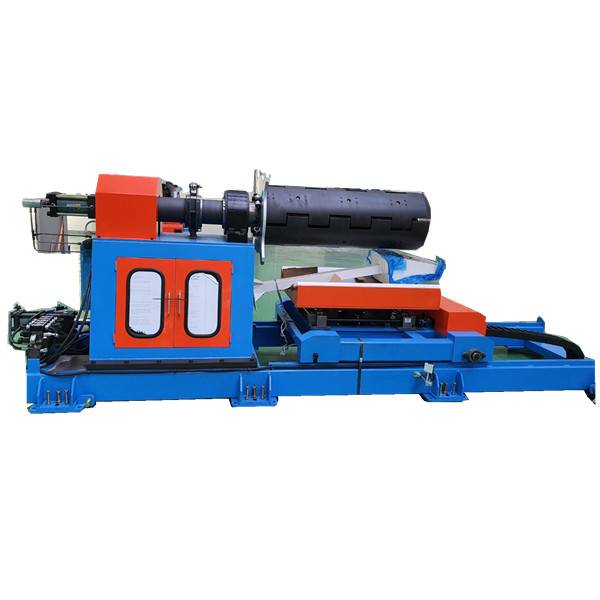

10 Ton hydraulic decoiler with loading car for the roofing sheet machine

10 Ton hydraulic decoiler with loading car for the roofing sheet machine

Zhongtuo cold rolling machinery is specially designed and manufactured Hydraulic Decoiler’s. Here we take the hydraulic decoiler which has a capacity of carrying 10000kg Coil as an eample. In standards, our Hydraulic Decoilers are capable to work with 800 – 1000 – 1300 mm width of Coil types, as well as the Mandrel’s expansion and contraction movements are provided automatically, with the Hydraulic System.

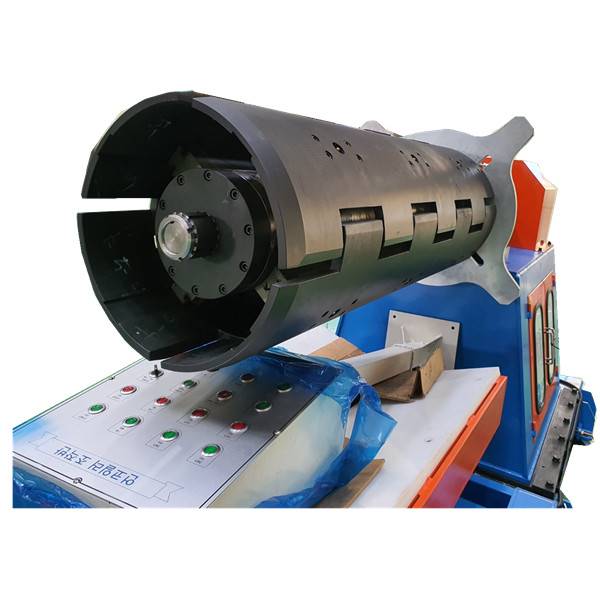

For the 10 Ton hydraulic decoiler with loading car for the roofing sheet machine, normalling the inner diameter, we can make it to 508 to 610mm and it is also adjustabe or customize according to your need. Hydraulic Motorized Mandrel system is being used in cases where it is not possible to do the gripping and tightening process, manually. This hydraulic system enables to place the coil, as tighten as it can be, when providing great convenience for Coils’ placing and displacing process.

Hydraulic loading Car: Provides a great convenience and speed, during the process of loading the new coil and replacing with the new one. It is movable and controlled by the PLC or remotors. As the rails, we can make it any length, where you are easy to put the coil in the decoiler.

For example, if the workshop is narrow, the truck can not go inside. The loading car can help you deliver the coil to the shaft without any forklift or others too. As to make the coil center to the shaft of the decoiler, the whole actions are fully autoamtic.

Drum Design and Speed: With the circular design of the drum, Coil is able to unwind without intact.

Control Panel: The speed of the Decoiler can be adjusted and integrated with the working Line Speed that Decoiler has been used for, with the touchscreen Control Panel.

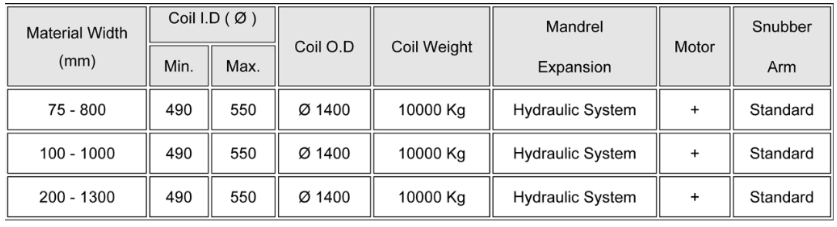

Here is 10 Ton hydraulic decoiler with loading car loading parameters for your reference:

If you need to know more information of the decoiler, please contact us at any time.
