Popular Design in Russia Exterior Wall Cladding Roll Forming Machine
Popular Design in Russia Exterior Wall Cladding Panel Roll Forming Machine could be used to make popular cladding wall panel in batch and fully automatic. The machine working speed could reach 25m/min.
Features of Popular Design in Russia Exterior Wall Cladding Roll Forming Machine:
- The machine can do the punching the shap rolling forming together.
- Punching could be done accurately and then it is easy for installation.
- The machine does the rolling in the same height to make sure the 100% perfect shape.
- Wall cladding panel is easy to install and do the connection.

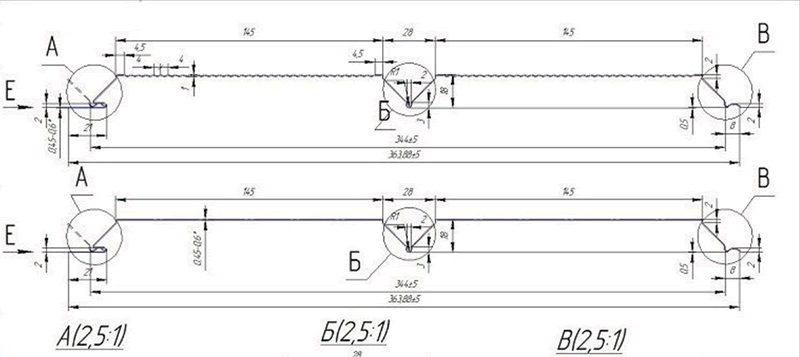

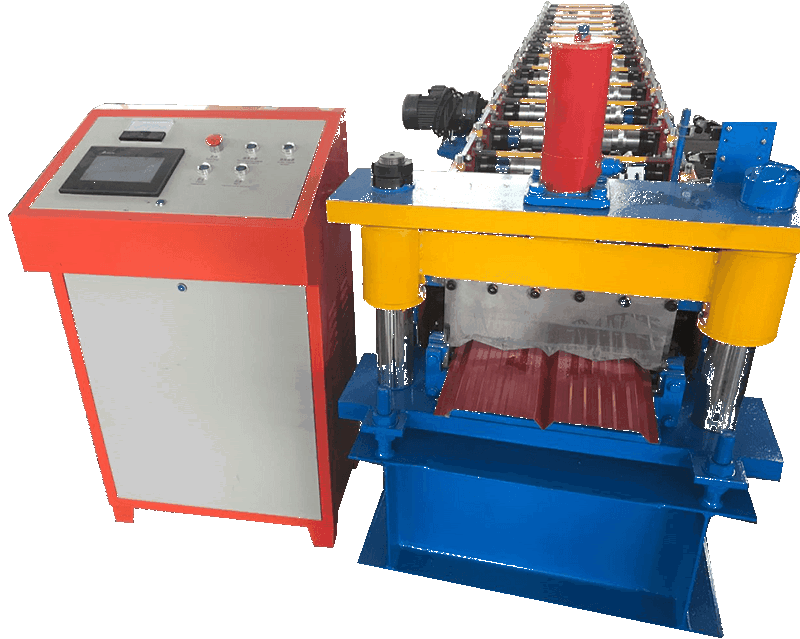

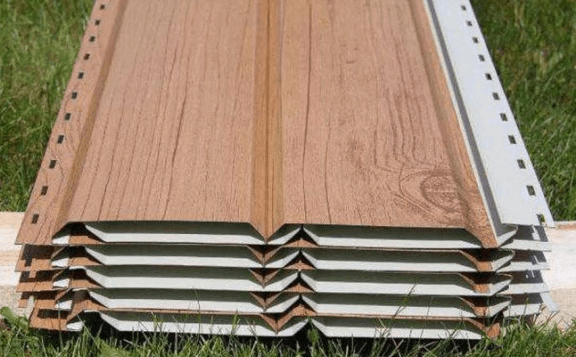

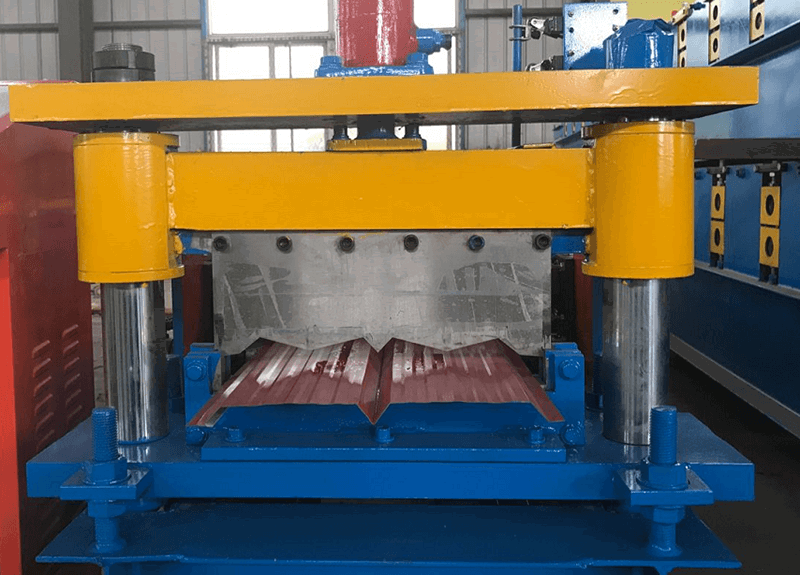

Popular Design in Russia Exterior Wall Cladding Roll Forming Machine pictures for your reference:
Here is the Popular Design in Russia Exterior Wall Cladding Roll Forming Machine parameters for your reference:
| Forming machine | a. Number of forming steps: 16 stations b. Shaft material: 45# steel with quenched treatment, precision machined, Outer diameter:50mm c. Roller material: bearing steel with quenched treatment d. Transport: by gear e. Forming speed:15m/min f.Motor:7.5kw g.Voltage:380v,50Hz,3 phase or customize according to customer needs: h. Structure: independent stand 3). Control system 5.7 touch screen 5.5kw |
| Automatic tracking cutting | Base frame: 5.5*1.2*0.65 Control station:Taida PLC Hydraulic station: 3kw Oil pump: 63*80*80 Cooling device:35Hz Encoder:600 tachometric wheel Mold Mulfan1 Guide: HG35-2000 Slider: HGH35cA Coupling :1 set |
For this machine, if you want to know more information, please contact us at any time.
